VOF-30C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 30W

Part	Applications	Power (Watts)	Efficiency	Voltage - Output 1	Standard Number	Mounting Type	Current - Output 1	Features	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation
CUI Inc. VOF-30C-S15	Household Appliances ITE (Commercial)	30 Watts	86 %	15 V	55024 55032 Class A 62368-1	Chassis Mount	2 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V

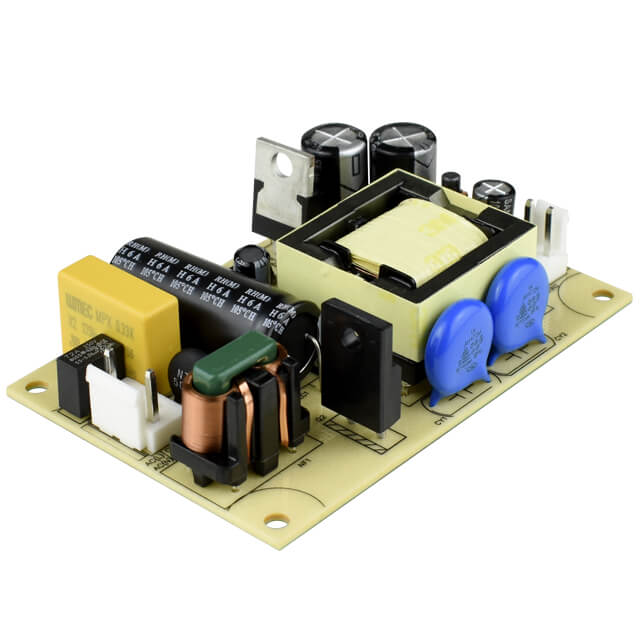

CUI Inc. VOF-30C-S24	Household Appliances ITE (Commercial)	30 Watts	87 %	24 V	55024 55032 Class A 62368-1	Chassis Mount	1.25 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V
CUI Inc. VOF-30C-S12	Household Appliances ITE (Commercial)	30 Watts	84 %	12 V	55024 55032 Class A 62368-1	Chassis Mount	2.5 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V
CUI Inc. VOF-30C-S3	Household Appliances ITE (Commercial)		73 %	3.3 V	55024 55032 Class A 62368-1	Chassis Mount	4.1 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V
CUI Inc. VOF-30C-S9	Household Appliances ITE (Commercial)	30 Watts		9 V	55024 55032 Class A 62368-1	Chassis Mount	3.333 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V
CUI Inc. VOF-30C-S5	Household Appliances ITE (Commercial)	21 W	78 %	5 V	55024 55032 Class A 62368-1	Chassis Mount	4.1 A	Universal Input	1	85 VAC 100 V	264 VAC 370 VDC	Open Frame	CB Scheme EN IEC UL	70 °C	-25 °C	2 in	1.06 in	3 "	27 mm	50.8 mm	76.2 mm	3000 V
