69132 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Material Flammability Rating	Termination	Contact Type	Insulation Height	Insulation Height	Mounting Type	Overall Contact Length	Overall Contact Length	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Contact Finish - Post

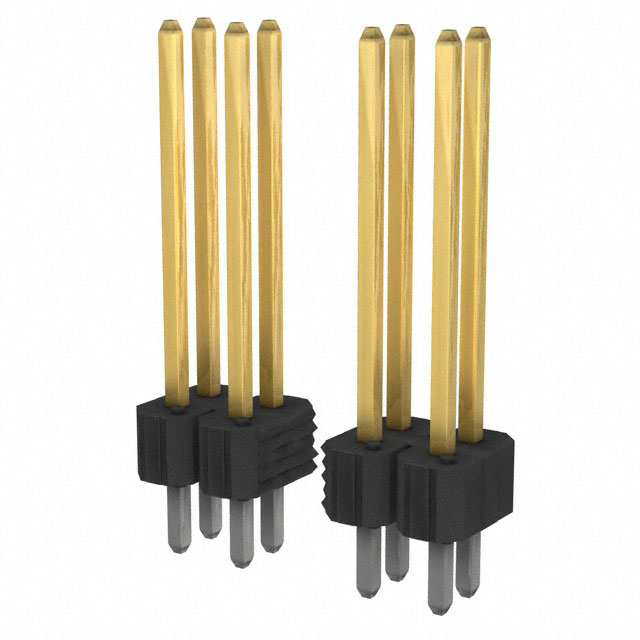

Amphenol ICC (FCI) 69132-172H	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	30 Áin	0.76 Ám	Gold or Gold GXT™	2

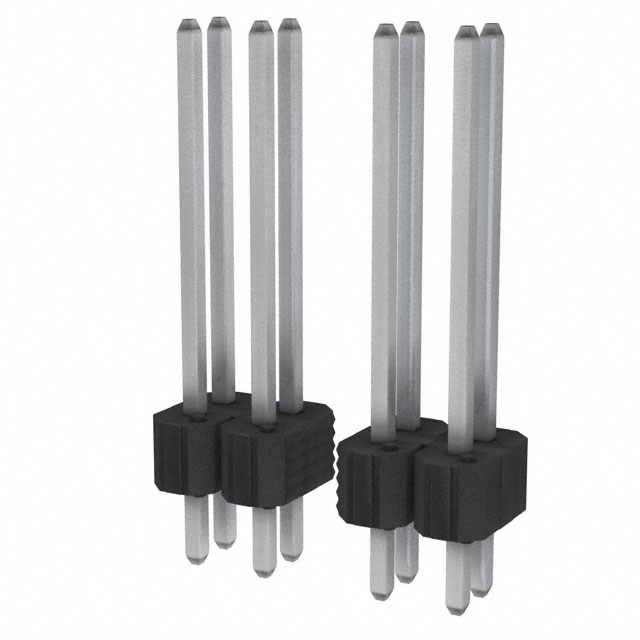

Amphenol ICC (FCI) 69132-472	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	100 çin	2.54 çm		2
Amphenol ICC (FCI) 69132-472HLF	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	100 çin	2.54 çm		2	Tin
Amphenol ICC (FCI) 69132-272	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	15 µin	0.38 µm	Gold or Gold GXT™	2
Amphenol ICC (FCI) 69132-172	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	30 Áin	0.76 Ám	Gold or Gold GXT™	2
Amphenol ICC (FCI) 69132-472H	2.54 mm	0.1 in	72	Unshrouded	Black	0.12 in	3.05 mm	Phosphor Bronze	UL94 V-0	Solder	Male Pin	0.1 in	2.54 mm	Through Hole	19.3 mm	0.76 in	Push-Pull	All	0.1 in	2.54 mm	Header	Square	100 çin	2.54 çm		2
