282884 Series

Catalog

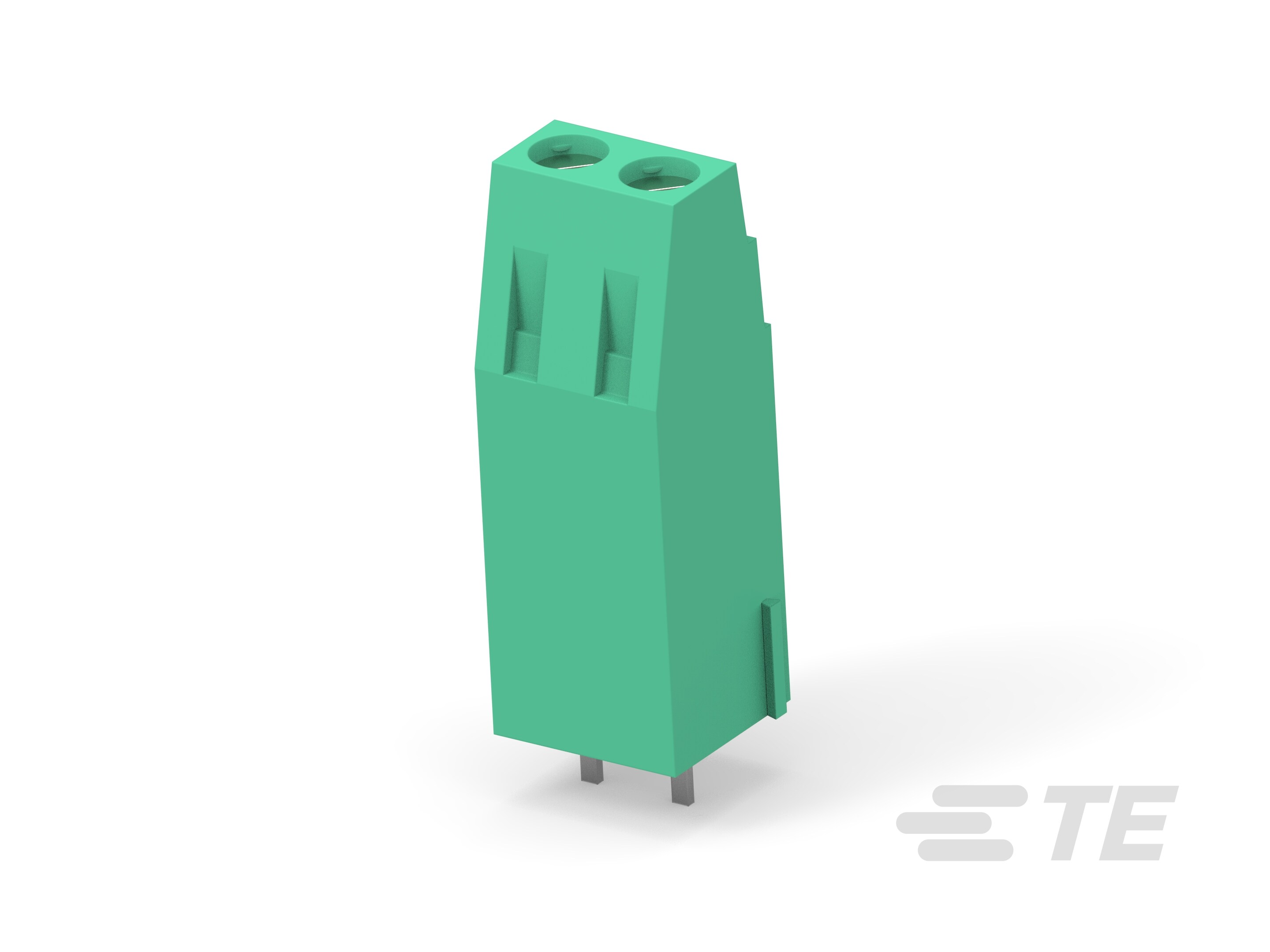

TERMI-BLOK PCB MOUNT 3RD 2P. 5

Part	Contact Material - Plating [custom]	Number of Levels	Torque - Screw	Torque - Screw	Wire Termination	Mounting Type	Pitch [x]	Pitch [x]	Clamp Material - Plating	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Voltage	Screw Material - Plating	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Color	Current	Features
TE Connectivity Raychem Cable Protection 282884-2	Brass - Tin Plated	1	6 Lb-In	0.68 Nm	Screw - Rising Cage Clamp	Through Hole	5 mm	0.197 in	Brass - Nickel Plated	2	-40 °C	105 ░C	M3	300 V	Brass - Nickel Plated	Horizontal with Board	30 AWG	16 AWG	Green	13.5 A	High Wire Entry Level Interlocking (Side)
