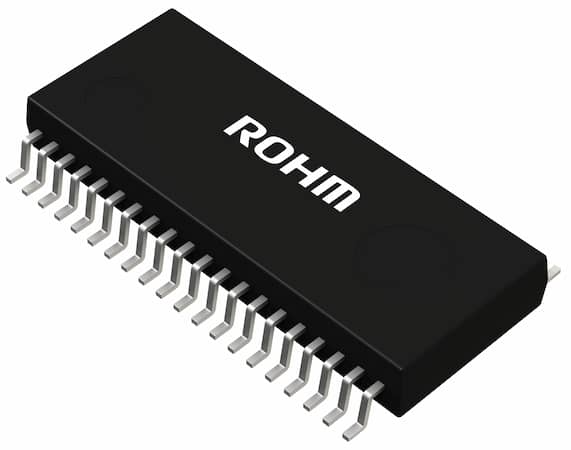

BD37069FV-M Series

Sound Processor for Car Audio with Built-in High-Voltage Amplifier and 2nd Order Post Filter

Catalog

Sound Processor for Car Audio with Built-in High-Voltage Amplifier and 2nd Order Post Filter

Part	Grade	Interface	Package / Case	Package / Case [y]	Package / Case [y]	Qualification	Mounting Type	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Function
Rohm Semiconductor BD37069FV-ME2	Automotive	I2C	40-SSOP	5.4 mm	0.213 in	AEC-Q100	Surface Mount	40-SSOP-B	Audio	85 °C	-40 C	6	7 V	9.5 V	Audio Processor

Catalog

Sound Processor for Car Audio with Built-in High-Voltage Amplifier and 2nd Order Post Filter

Description

BD37069FV-M is a sound processor developed for car audio with built-in selector of six stereo inputs and output interfaced to ADC after adjusting signal level. BD37069FV-M has a 6-channel volume circuit and built-in 2nd order post filter which reduces the out-of-band noise. The High-Voltage function is capable to reach up to 5.2VRMSmaximum output. Furthermore, the IC is simple to design due to the built-in TDMA noise reduction systems.
