PPTC402 Series

Catalog

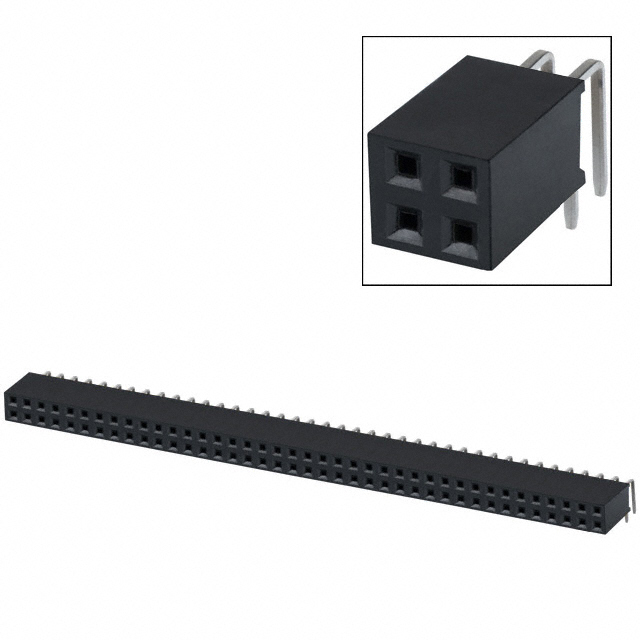

CONN HDR 80POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Material Flammability Rating	Insulation Color	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish - Post	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Number of Positions Loaded	Contact Type	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPTC402LJBN	Phosphor Bronze	Square	Polyester	UL94 V-0	Black	80	0.1 in	2.54 mm	Right Angle Through Hole	Tin	Header	3 A	2	0.124 in	3.15 mm	0.1 "	2.54 mm	-40 C	105 ░C	Solder	0.2 in	5.08 mm	250 V	All	Female Socket	Push-Pull
Sullins Connector Solutions PPTC402LFBN-RC	Phosphor Bronze	Square	Polyester	UL94 V-0	Black	80	0.1 in	2.54 mm	Through Hole	Tin	Header	3 A	2			0.1 "	2.54 mm	-40 C	105 ░C	Solder			250 V	All	Female Socket	Push-Pull	0.335 "	8.51 mm	0.126 "	3.2 mm
Sullins Connector Solutions PPTC402LJBN-RC	Phosphor Bronze	Square	Polyester	UL94 V-0	Black	80	0.1 in	2.54 mm	Right Angle Through Hole	Tin	Header	3 A	2	0.124 in	3.15 mm	0.1 "	2.54 mm	-40 C	105 ░C	Solder	0.2 in	5.08 mm	250 V	All	Female Socket	Push-Pull
