Q48SQ Series

Catalog

MODULE DC-DC 48VIN 1-OUT 12V 33A 400W 8-PIN QUARTER-BRICK

Part	Control Features	Type	Package / Case	Features	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Voltage - Isolation	Efficiency	Voltage - Output 1	Number of Outputs	Applications

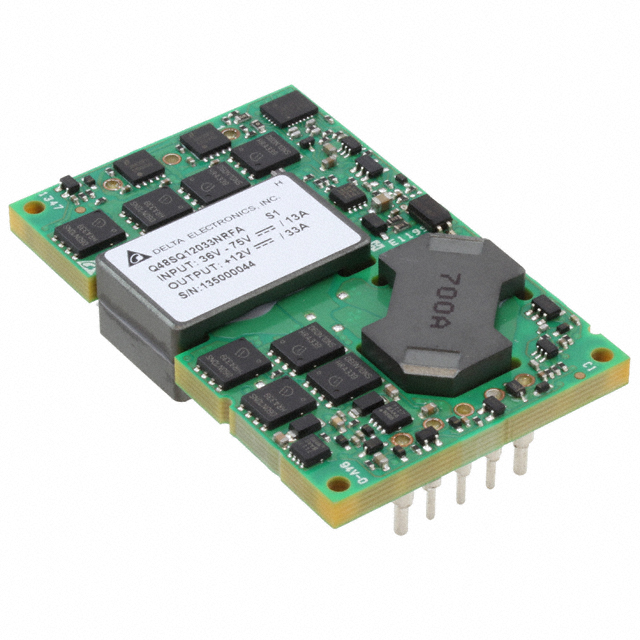

Delta Electronics Q48SQ12033NRFH	Active Low Enable	Isolated Module	8-DIP Module 1/4 Brick	OCP OTP OVP Remote On/Off UVLO	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	85 °C	-40 C	36 V	33 A	400 W	Through Hole	1.5 kV	95.5 %	12 V	1	ITE (Commercial)

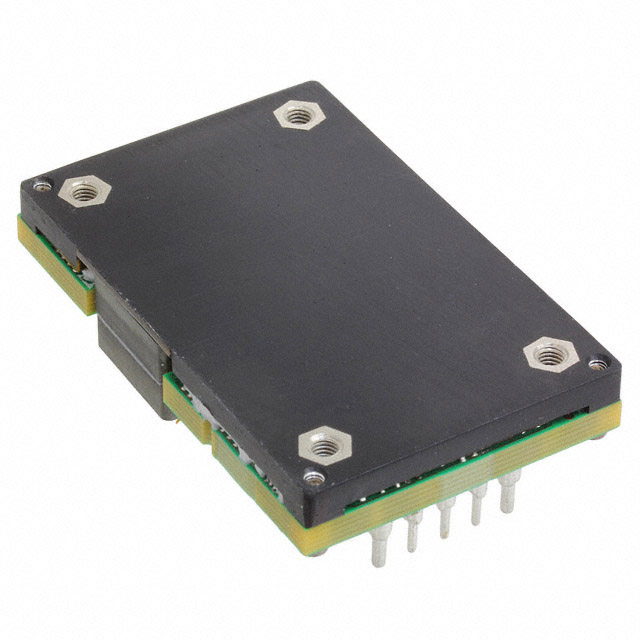

Delta Electronics Q48SQ12025NRFH	Active Low Enable	Isolated Module	8-DIP Module 1/4 Brick	OCP OTP OVP Remote On/Off UVLO	75 V	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	85 °C	-40 C	36 V	25 A	300 W	Through Hole	1.5 kV	95.5 %	12 V	1	ITE (Commercial)
