R14133 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

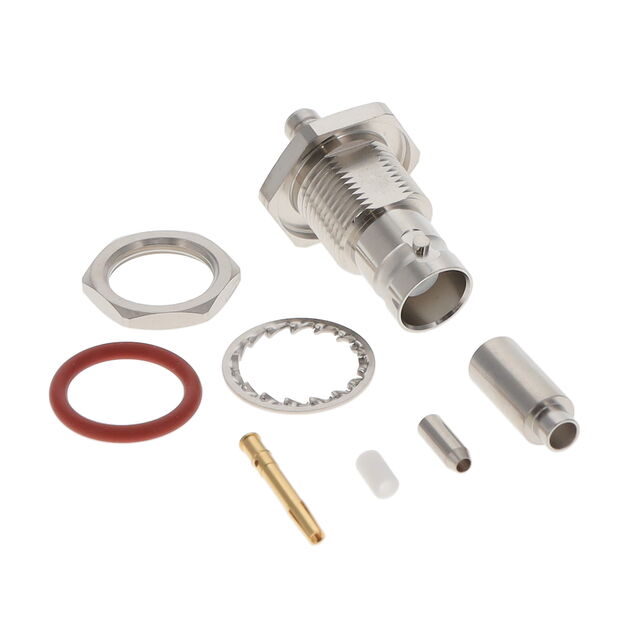

BNC / STRAIGHT BULKHEAD JACK PAN
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Body Material | Voltage Rating | Center Contact Plating | Mounting Type | Cable Group | Cable Group | Connector Style | Center Contact Material | Housing Color | Contact Termination | Mounting Feature | Impedance | Frequency - Max [Max] | Fastening Type | Number of Ports | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | 500 | Brass | 500 V | Gold | Panel Mount | RG-174 | 316 | BNC | Beryllium Copper | Silver | Crimp | Bulkhead - Front Side Nut | 50 Ohms | 4 GHz | Bayonet Lock | 1 | Female Socket Jack | Crimp |
