PIP213 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

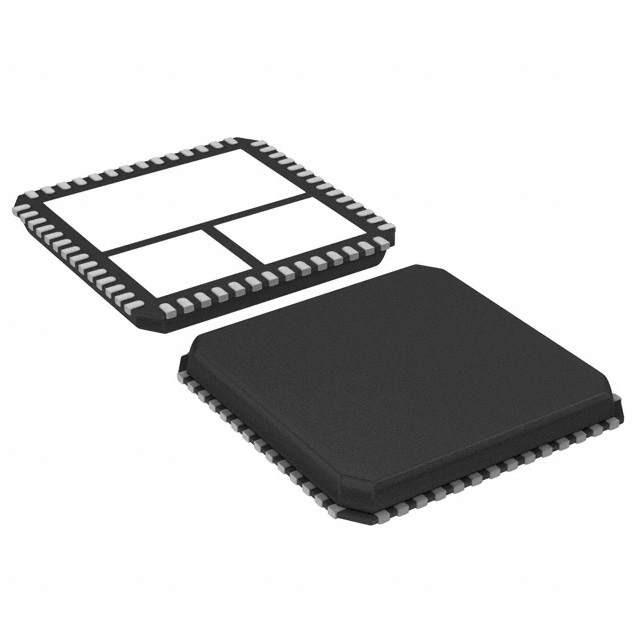

IC HALF BRIDGE DRVR 25A 56HVQFN
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Load (Max) | Package / Case | Current - Peak Output | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Technology | Current - Output / Channel | Interface | Mounting Type | Output Configuration | Rds On (Typ) LS | Rds On (Typ) HS | Features | Load Type | Package Width | Package Name | Package Length | Applications | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | -55 °C | 150 °C | 24 V | 56-VFQFN Exposed Pad | 40 A | 3.3 V | 16 V | DrMOS | 25 A | PWM | Surface Mount | Half Bridge | 3.8 mOhm | 6.5 mOhm | 5V Regulated Output Bootstrap Circuit | Inductive | 8 mm | 56-HVQFN | 8 mm | Synchronous Buck Converters | Over Temperature UVLO |
