089107.5NXWS Series

Fuse - LP Mini 58VDC 10.9mmBlade Ag 7.5A

Catalog

Fuse - LP Mini 58VDC 10.9mmBlade Ag 7.5A

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Mounting Type	Breaking Capacity @ Rated Voltage	Melting I²t	DC Cold Resistance	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Color	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 089107.5NXWS	0.429 "	0.15 in	3.81 mm	8.73 mm	0.344 "	10.9 mm	7.5 A	Requires Holder	1 kA	53	10.65 Ohms	Automotive	125 °C	-40 °C	Blade Miniature (Low Profile)	Brown	58 VDC

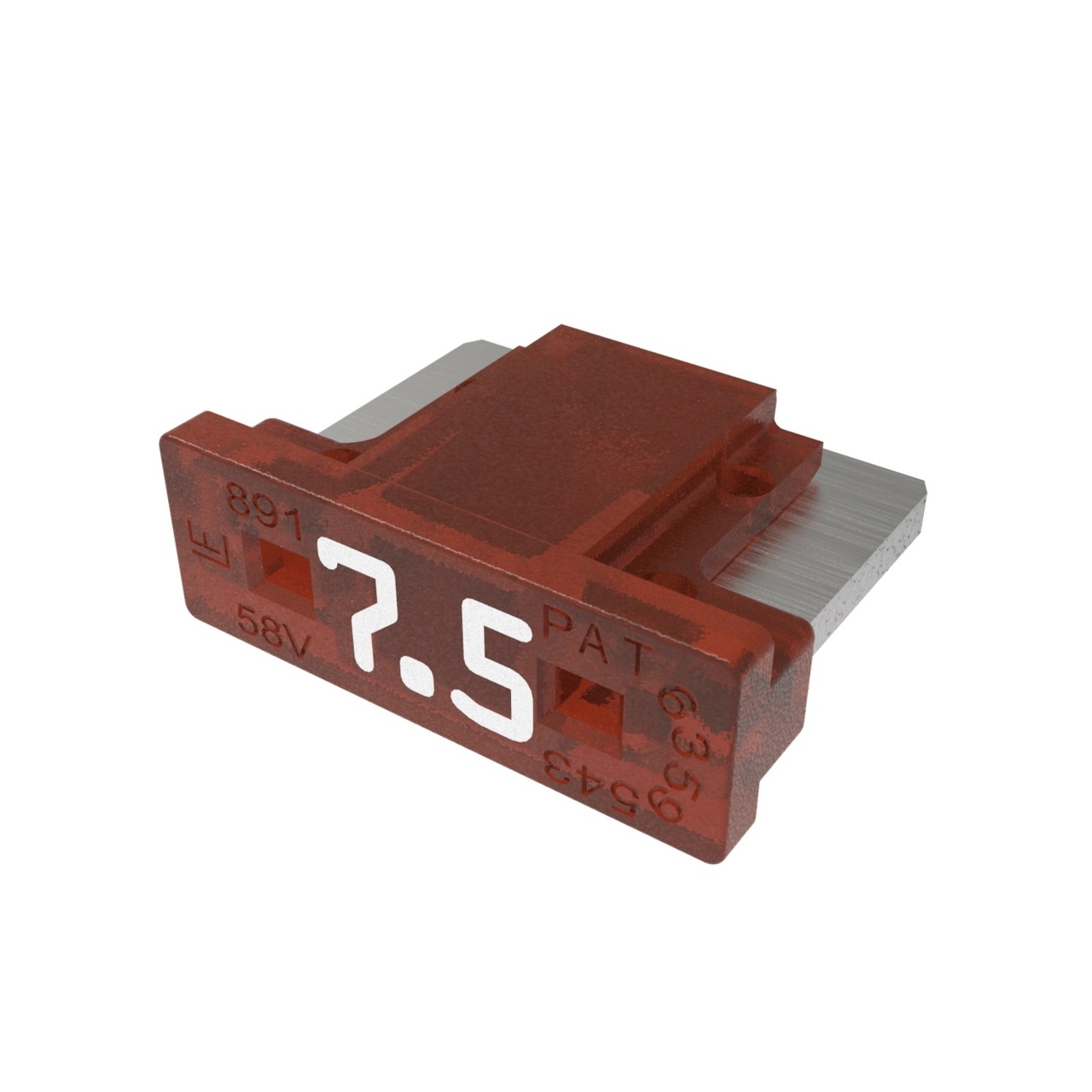

Fuse - LP Mini 58VDC 10.9mmBlade Ag 7.5A

• Fast-acting

• Brown housing indicates 7.5 A rating

• Silver-plated zinc terminals

• Net weight 0.4 g ±15 %

• Complies with ISO 8820-9

• UL Recognized as a UL 248 Special Purpose Fuse

This 7.5 A Low Profile MINI® 10.9 mm fuse protects circuit protection as well as larger and heavier MINI 58V blade fuses.
