SH-7010 Series

Catalog

ROTARY CODE SW, 10POS, BCD, 0.1A, 5V

Part	Contact Material	Electrical Life	Mounting Type	Length [x]	Length	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Height Above Board	Height Above Board	Washable	Actuator Type	Actuator Level	Voltage Rating	Contact Finish	Circuit	Termination Style	Number of Positions	Body Material	Current Rating (Amps)

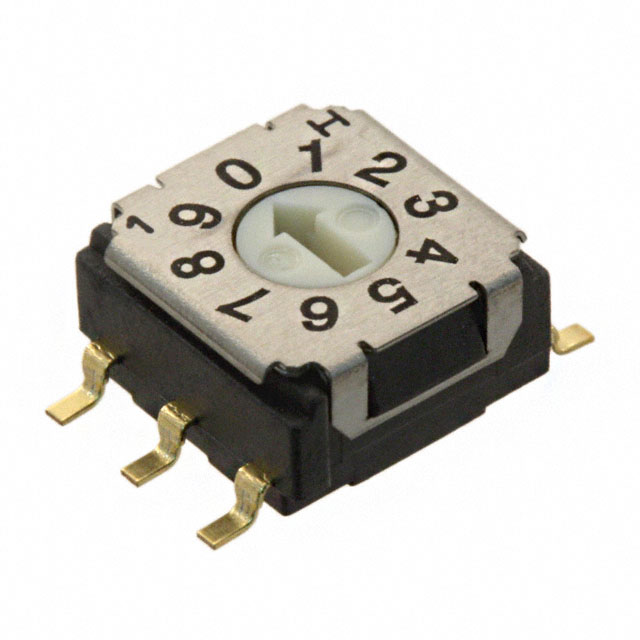

Nidec Components Corporation SH-7010TB	Copper Alloy	10000 Cycles	Surface Mount	0.287 "	7.3 mm	85 °C	-40 °C	0.1 in	Full	2.54 mm	3.75 mm	0.148 in		Rotary for Tool	Flush Recessed	5 V	Gold	BCD	Gull Wing	10	Polyphenylene Sulfide (PPS)	100 mA
Nidec Components Corporation SH-7010MC	Copper Alloy	10000 Cycles	Through Hole	0.287 "	7.3 mm	85 °C	-40 °C	0.1 in	Full	2.54 mm	3.7 mm	0.146 in		Rotary for Tool	Flush Recessed	5 V	Gold	BCD	PC Pin	10	Polyphenylene Sulfide (PPS)	100 mA
