SFH41 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER 20POS IDC GOLD

Part	Connector Type	Number of Rows [custom]	Pitch	Pitch	Color	Contact Type	Mounting Type	Cable Termination	Contact Finish Thickness	Contact Finish	Features	Number of Positions	Row Spacing	Row Spacing	Wire Type

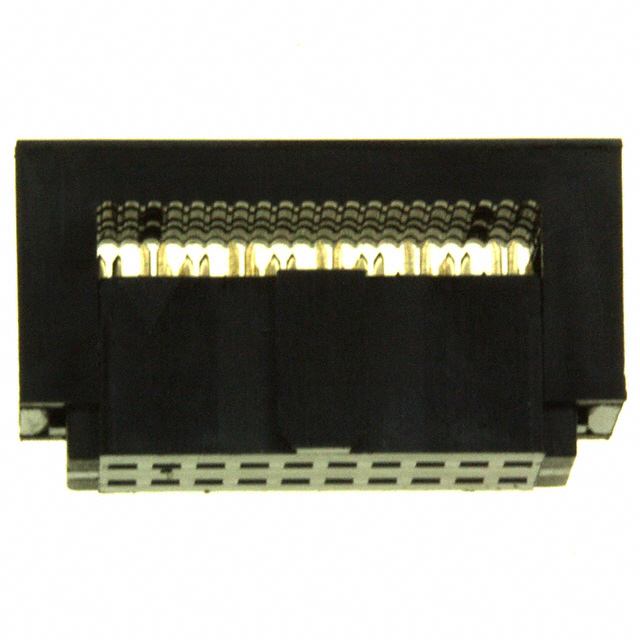

Sullins Connector Solutions SFH41-PPPB-D10-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	20	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D50-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	100	2.54 mm	0.1 "	Ribbon Cable

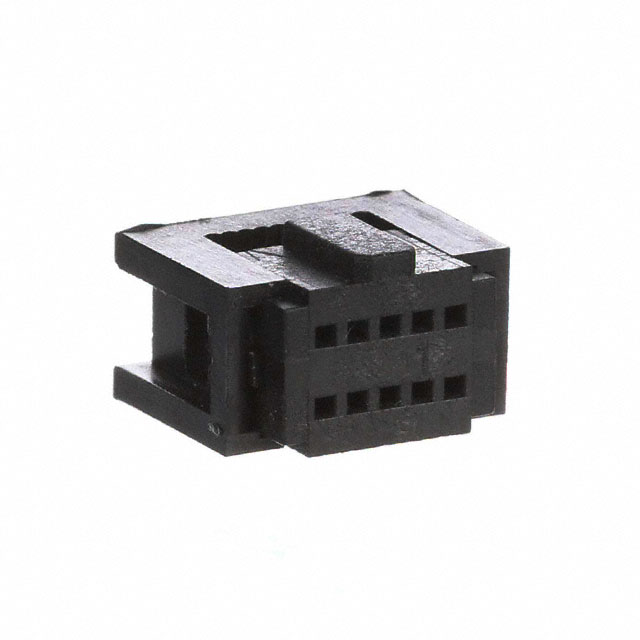

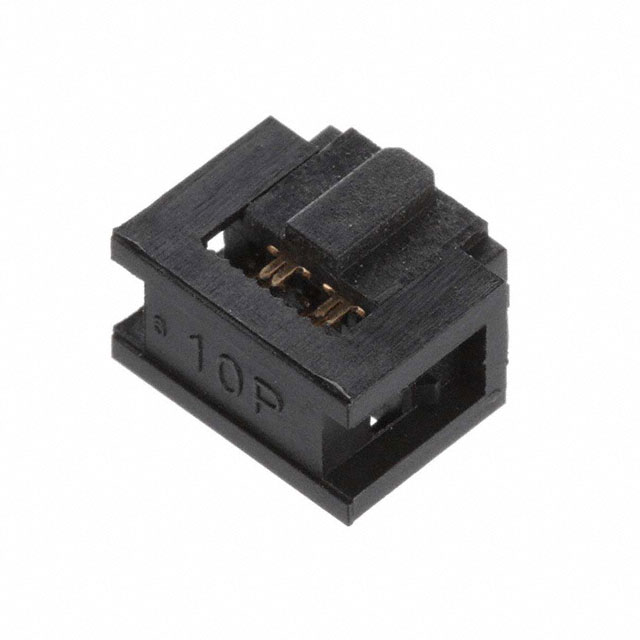

Sullins Connector Solutions SFH41-PPPB-D05-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	10	2.54 mm	0.1 "	Ribbon Cable

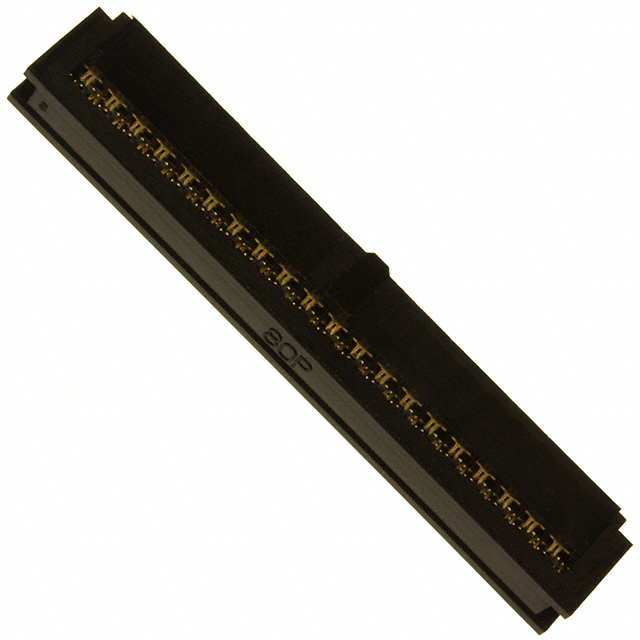

Sullins Connector Solutions SFH41-PPPB-D40-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	80	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D10-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	20	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D15-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	30	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D50-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	100	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D40-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	80	2.54 mm	0.1 "	Ribbon Cable

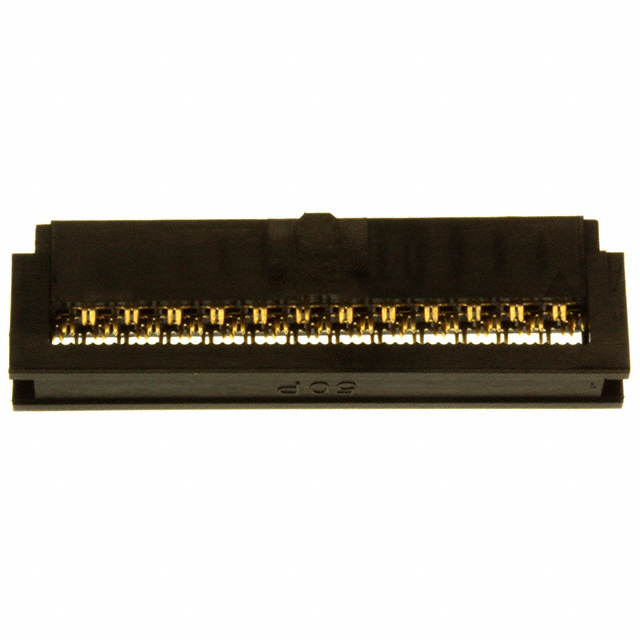

Sullins Connector Solutions SFH41-PPPB-D25-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	50	2.54 mm	0.1 "	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D25-ID-BK	Header	2	0.05 in	1.27 mm	Black	Female Socket	Free Hanging (In-Line)	IDC	Flash	Gold	Feed Through Polarizing Key	50	2.54 mm	0.1 "	Ribbon Cable
