RFD-4195 Series
Manufacturer: RF Industries
Beta
⌘K
4.1/9.5 MALE-4.1/9.5 FEMALE; R/A
| Part | Dielectric Material | Mating Cycles | Insertion Loss | Center Contact Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Convert From (Adapter End) | Frequency - Max [Max] | Center Contact Plating | Adapter Type | Style | Convert To (Adapter End) | Adapter Series | Impedance | Conversion Type | Mounting Type | Mounting Feature | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

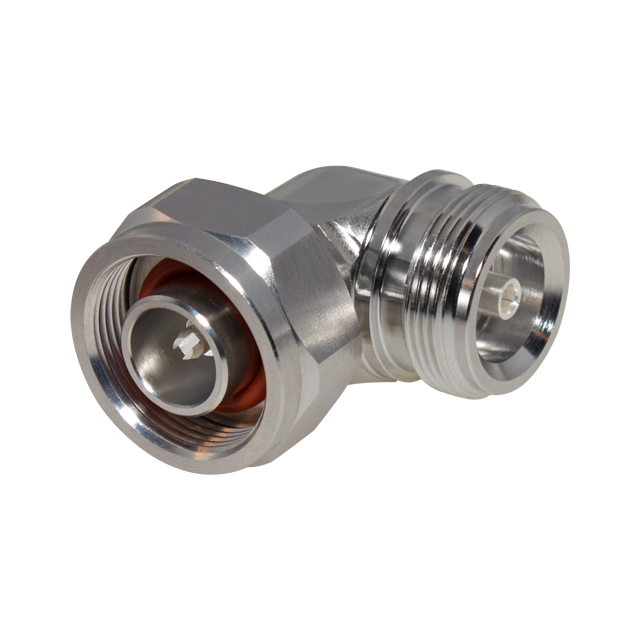

 RF Industries | Polytetrafluoroethylene (PTFE) | 500 | 0.08 dB | Brass | White Bronze | 155 C | -55 C | Brass | 4.1/9.5 Plug Male Pin | 3 GHz | Silver | Plug to Jack | Right Angle | 4.1/9.5 Jack Female Socket | 4.1/9.5 to 4.1/9.5 | 50 Ohms | Same Series | Free Hanging (In-Line) Right Angle | ||

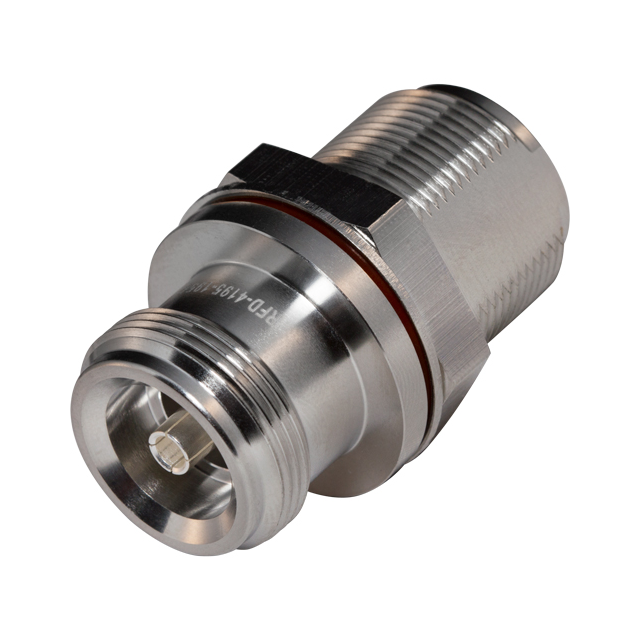

 RF Industries | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | White Bronze | Brass | 4.1/9.5 Jack Female Socket | 6000 MHz | Silver | Jack to Jack | Straight | 4.1/9.5 Jack Female Socket | 4.1/9.5 to 4.1/9.5 | 50 Ohms | Same Series | Panel Mount | Bulkhead | Female to Female |
