76020 Series

Catalog

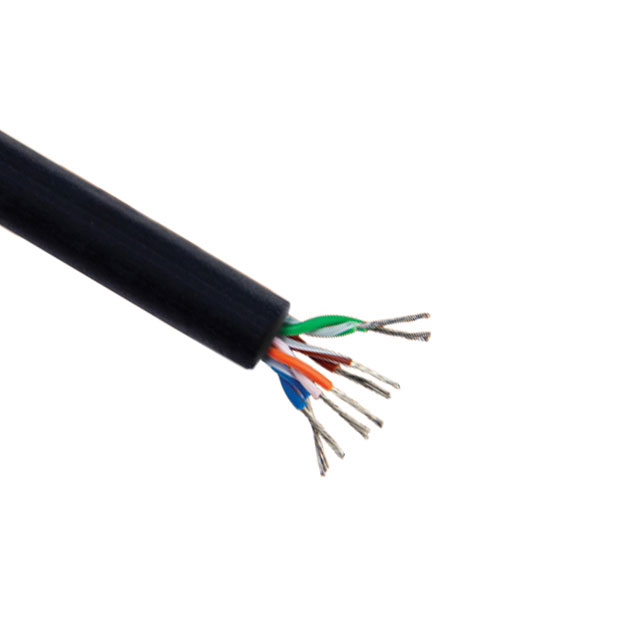

MULTI-CONDUCTOR CABLES CAT 5E INDUSTRIAL ETHERNET 24 AWG 4PR CONDUCTOR, UNSHIELDED, 500FT, BLACK

Part	Length	Length	Conductor Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Cable Type	Ratings	Number of Conductors	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material
ALPHA WIRE 76020 BK002	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Copper Bare	Polypropylene (PP)	7	32 AWG	300 VDC	Multi-Pair Cat5e	ISO 10993	8	Biological Compatibility Rip Cord	6.27 mm	0.247 in	100 ft	30.5 m	Black	0.035 in	0.889 mm	24 AWG	-50 °C	75 ░C	Thermoplastic Elastomer (TPE)
ALPHA WIRE 76020 BK001	304.8 m	1000 ft	Copper Bare	Polypropylene (PP)	7	32 AWG	300 VDC	Multi-Pair Cat5e	ISO 10993	8	Biological Compatibility Rip Cord	6.27 mm	0.247 in			Black	0.035 in	0.889 mm	24 AWG	-50 °C	75 ░C	Thermoplastic Elastomer (TPE)
