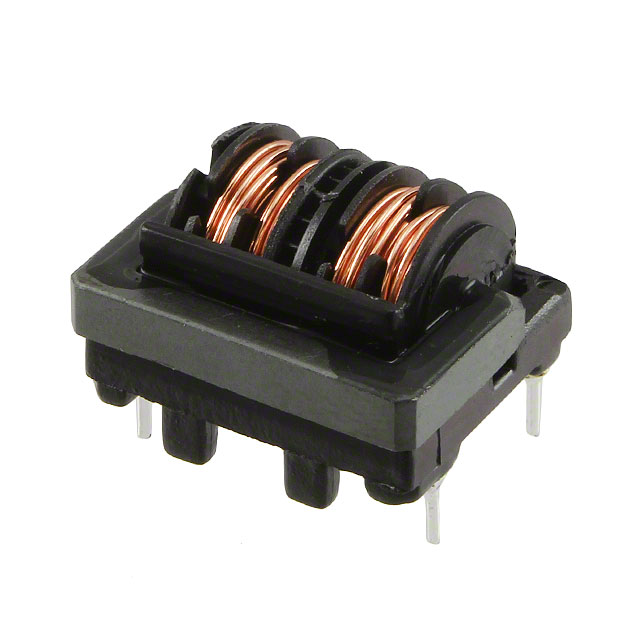

SS17HB Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES DUAL 14000UH 1KHZ 0.5A 1.1OHM DCR THRU-HOLE

Part	Package / Case	Voltage Rating - AC	Height (Max) [z]	Height (Max) [z]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Mounting Type	Inductance @ Frequency	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
KEMET SS17HB-R05140	Vertical 4 PC Pin	250 V	13.8 mm	0.543 in	2	1.1 Ohm	Through Hole	14 mH	Power Line	120 °C	-25 °C	0.787 "	17.85 mm	20 mm	0.703 in	500 mA
KEMET SS17HB-R13020	Vertical 4 PC Pin	250 V	13.8 mm	0.543 in	2		Through Hole	1 kHz 2 mH	Power Line	120 °C	-25 °C	0.787 "	17.85 mm	20 mm	0.703 in	1.3 A	180 mOhm
KEMET SS17HB-R03300	Vertical 4 PC Pin	250 V	13.8 mm	0.543 in	2	2.6 Ohm	Through Hole	1 kHz 30 mH	Power Line	120 °C	-25 °C	0.787 "	17.85 mm	20 mm	0.703 in	300 mA
