R16120 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

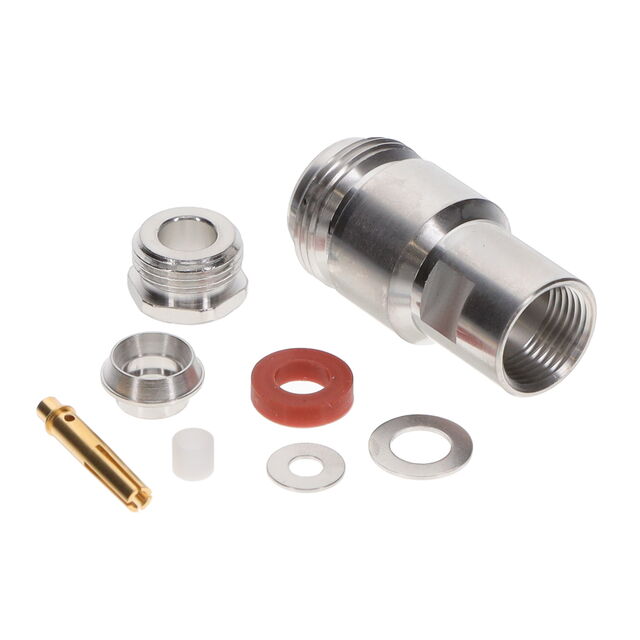

N F STR CL 5/50S+D C50
| Part | Mating Cycles | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Cable Group | Cable Group | Contact Termination | Connector Type | Impedance | Connector Style | Fastening Type | Center Contact Material | Frequency - Max [Max] | Number of Ports | Shield Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Brass | 850 V | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | 1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Spacer 2 Washer | 142 223 400 | RG-58 | Solder | Female Socket Jack | 50 Ohms | N Type | Threaded | Beryllium Copper | 11 GHz | 1 | Clamp | Free Hanging (In-Line) |
