300DP1R1 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER DPDT 5A 120V

Part	Actuator Type	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Circuit	Switch Function	Voltage Rating - DC
E-Switch 300DP1R1M1QE	Concave	Black	5 A	No Marking	120 V	17.96 mm	10.62 mm	Solder Lug	85 °C	-30 ░C	Epoxy Sealed Terminals	Flange Panel Mount	DPDT	On-On	28 V
E-Switch 300DP1R1BLKM6QE	Concave	Black	5 A	No Marking	120 V	17.96 mm	10.62 mm	PC Pin	85 °C	-30 ░C	Epoxy Sealed Terminals	Right Angle Through Hole	DPDT	On-On	28 V

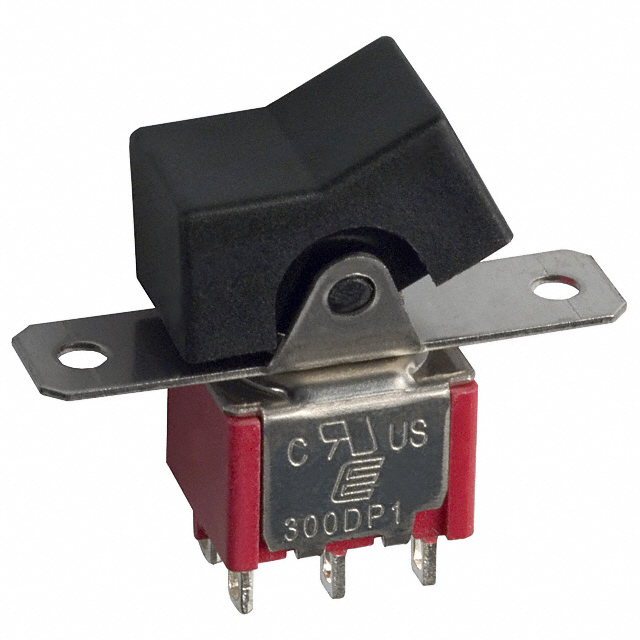

E-Switch 300DP1R1BLKM1QE	Concave	Black	5 A	No Marking	120 V	17.96 mm	10.62 mm	Solder Lug	85 °C	-30 ░C	Epoxy Sealed Terminals	Flange Panel Mount	DPDT	On-On	28 V
E-Switch 300DP1R16WHTM1QE	Paddle	White	5 A	No Marking	120 V	12.78 mm	12.52 mm	Solder Lug	85 °C	-30 ░C	Epoxy Sealed Terminals	Flange Panel Mount	DPDT	On-On	28 V
E-Switch 300DP1R1BLKM7QE	Concave	Black	5 A	No Marking	120 V	17.96 mm	10.62 mm	PC Pin	85 °C	-30 ░C	Epoxy Sealed Terminals	Right Angle Through Hole Vertical	DPDT	On-On	28 V
