M80-705 Series

Catalog

RECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 63 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 3 ROW

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Number of Positions	Cable Termination	Number of Rows [custom]	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Features	Contact Finish
Harwin Inc. M80-7056305	24 AWG	28 AWG	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	Receptacle	63	Crimp	3	2 mm	0.079 in	0.3 Ám	11.8 Áin	Discrete	Jackscrews	Gold

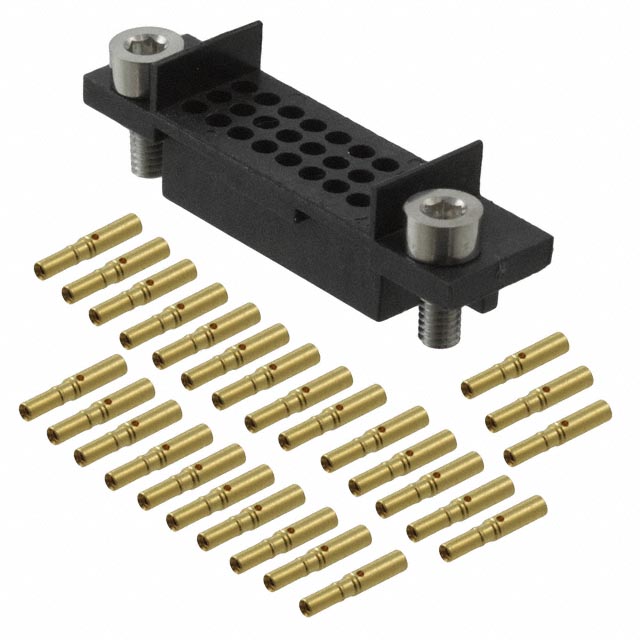

Harwin Inc. M80-7052705	24 AWG	28 AWG	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	Receptacle	27	Crimp	3	2 mm	0.079 in	0.3 Ám	11.8 Áin	Discrete	Jackscrews	Gold

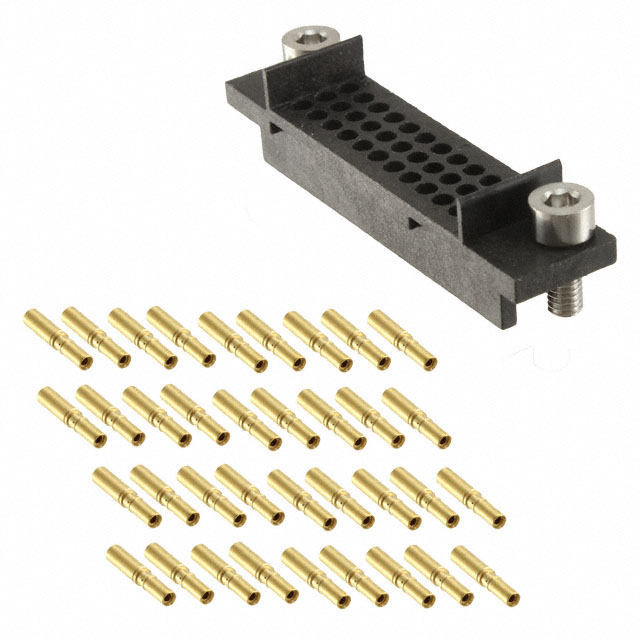

Harwin Inc. M80-7053605	24 AWG	28 AWG	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	Receptacle	36	Crimp	3	2 mm	0.079 in	0.3 Ám	11.8 Áin	Discrete	Jackscrews	Gold
