1634583 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

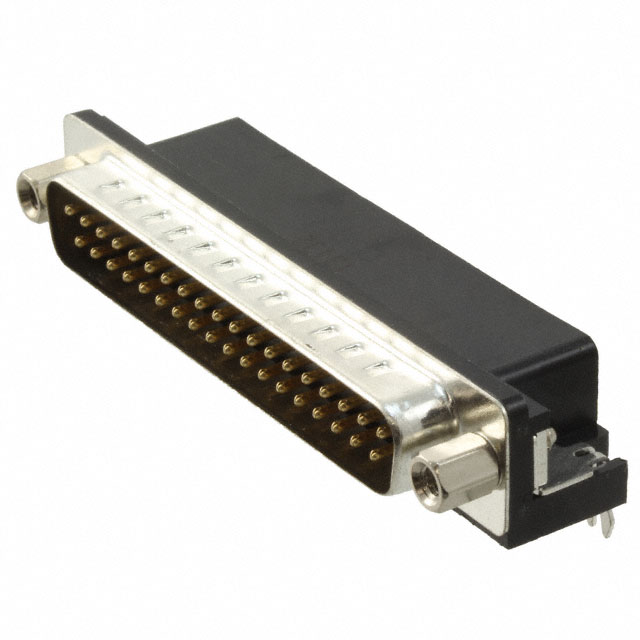

37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Contact Material | Connector Type | Shell Size, Connector Layout | Number of Rows | Flange Feature | Dielectric Material | Mounting Type | Connector Style | Termination | Features | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish | Number of Positions | Voltage Rating | Backset Spacing | Backset Spacing | Material Flammability Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Signal | Gold | Brass | Male Pins Plug | 4 (DC C) | 2 | Female Screwlock (4-40) Mating Side | Thermoplastic | Through Hole Right Angle | D-Sub | Solder | Board Lock Grounding Indents | 15 µin | 0.38 µm | 5 A | Nickel Plated Steel | 37 | 250 VDC | 0.411 in | 10.43 mm | UL94 V-0 | Black |
