M39026 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

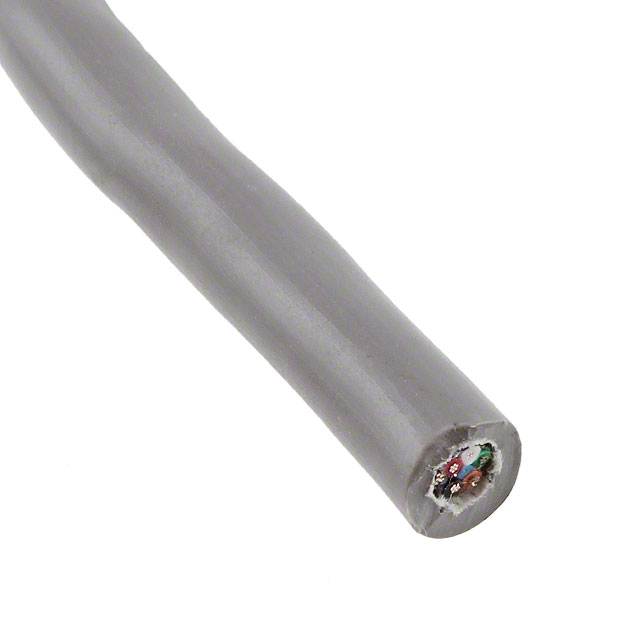

CABLE 5COND 24AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket Color | Shield Type | Features | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Cable Type | Ratings | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 300 VDC | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.187 in | 4.75 mm | 914.4 m | 3000 ' | Slate | Foil | Drain Wire | 24 AWG | 80 °C | -20 ░C | 5 | Multi-Conductor | UL Style 2464 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 100 % | Aluminum | 300 VDC | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.187 in | 4.75 mm | Slate | Foil | Drain Wire | 24 AWG | 80 °C | -20 ░C | 5 | Multi-Conductor | UL Style 2464 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
