MB-09-301 Series

Catalog

BUZZER PIEZO 35.8MM PNL MNT

Part	Operating Mode	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Port Location	Current - Supply [Max]	Current - Supply [Min]	Input Type	Driver Circuitry	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Termination	Technology	Sound Pressure Level (SPL)	Termination	Termination	Size / Dimension [diameter]

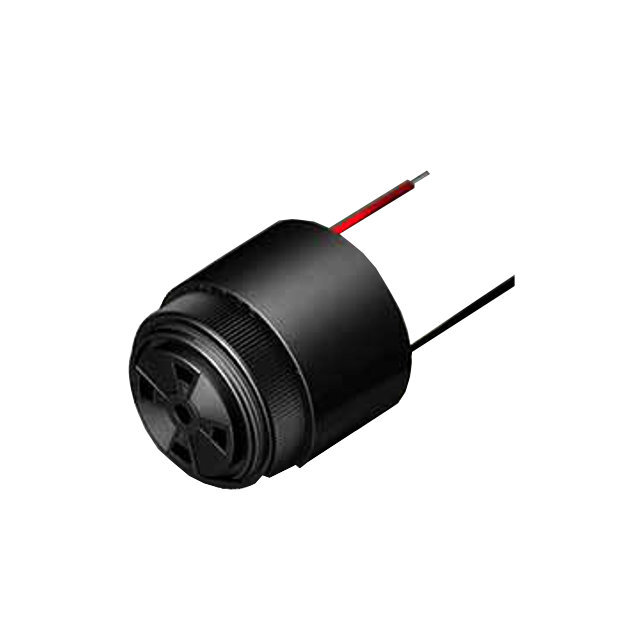

Floyd Bell Inc MB-09-301-W(S)	Pulse Slow	UL UR	35.8 mm	1.409 in	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Wire Leads	Piezo	95 dB
Floyd Bell Inc MB-09-301-Q(F)	Fast Pulse	UL UR	35.8 mm	1.409 in	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm
Floyd Bell Inc MB-09-301-S(U)	Fast Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Screw Terminal Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-09-301-S(F)	Fast Pulse	UL UR	35.8 mm	1.409 in	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Screw Terminal Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm
Floyd Bell Inc MB-09-301-W(M)	Medium Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Wire Leads	Piezo	95 dB			1.41 in
Floyd Bell Inc MB-09-301-Q(M)	Medium Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-09-301-S(M)	Medium Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Screw Terminal Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm	1.41 in
Floyd Bell Inc MB-09-301-W(F)	Fast Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Wire Leads	Piezo	95 dB			1.41 in
Floyd Bell Inc MB-09-301-W(U)	Fast Pulse	UL UR		35.81 mm	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Wire Leads	Piezo	95 dB			1.41 in
Floyd Bell Inc MB-09-301-Q(S)	Pulse Slow	UL UR	35.8 mm	1.409 in	Panel Mount	Top	10 mA	5 mA	AC	Indicator Internally Driven	IP68 - Dust Tight Waterproof	220 V	130 V	1.38 in	35.05 mm	2.9 kHz	Quick Connect Tab	Piezo	95 dB	0.25 "	6.35 mm
