NPPC251 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

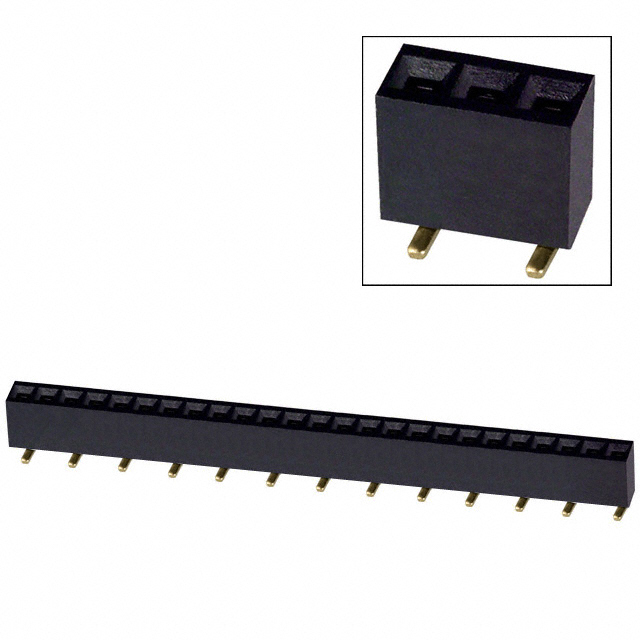

CONN HDR 25POS 0.1 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Contact Finish - Mating | Mounting Type | Contact Finish Thickness - Mating | Insulation Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Material Flammability Rating | Number of Positions | Voltage Rating | Number of Positions Loaded | Connector Type | Contact Type | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | 3 A | Gold | Gold | Surface Mount | Flash | Black | Solder | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | 1 | UL94 V-0 | 25 | 250 V | All | Header Top or Bottom Entry | Female Socket | Push-Pull | ||
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | 3 A | Gold | Gold | Surface Mount | Flash | Solder | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | 1 | UL94 V-0 | 25 | 250 V | All | Header Top or Bottom Entry | Female Socket | Push-Pull | |||
Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | 3 A | Gold | Gold | Through Hole | Flash | Black | Solder | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.335 " | 8.51 mm | 1 | UL94 V-0 | 25 | 250 V | All | Header | Female Socket | Push-Pull | 0.126 " | 3.2 mm |
