770178 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

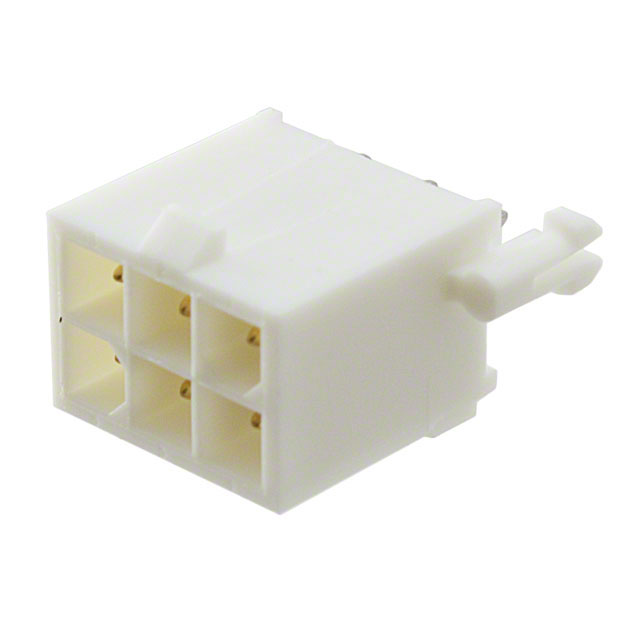

CONN SHROUDED HEADER (4 SIDES) HDR 6POWER POS 4.14MM SOLDER ST THRU-HOLE BAG
| Part | Contact Finish Thickness - Post | Applications | Pitch - Mating | Pitch - Mating | Contact Material | Termination | Contact Type | Current Rating (Amps) | Insulation Color | Insulation Height | Insulation Height | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Shape | Voltage Rating | Number of Rows [custom] | Fastening Type | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Shrouding | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Material Flammability Rating | Style | Connector Type | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 0.163 in | 4.14 mm | Brass | Solder | Male Pin | Varies by Wire Gauge | White | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Tin-Lead | Circular | 600 VAC | 2 | Locking Ramp | Through Hole | Board Lock | 85 °C | -20 ░C | 4.14 mm | 0.163 in | 6 | Shrouded - 4 Wall | 4.45 mm | 0.175 in | All | UL94 V-0 | Board to Cable/Wire | Header | Tin-Lead | |||
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 0.163 in | 4.14 mm | Brass | Solder | Male Pin | Varies by Wire Gauge | White | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 30 Áin | 0.76 Ám | Gold | Circular | 600 VAC | 2 | Locking Ramp | Through Hole | Board Lock | 105 ░C | -20 ░C | 4.14 mm | 0.163 in | 6 | Shrouded - 4 Wall | 4.45 mm | 0.175 in | All | UL94 V-0 | Board to Cable/Wire | Header | Tin-Lead | |||
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 0.163 in | 4.14 mm | Brass | Solder | Male Pin | Varies by Wire Gauge | Black | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Circular | 600 VAC | 2 | Locking Ramp | Through Hole | Board Lock | 85 °C | -20 ░C | 4.14 mm | 0.163 in | 6 | Shrouded - 4 Wall | 4.45 mm | 0.175 in | All | UL94 V-0 | Board to Cable/Wire | Header | Tin | ||||
TE Connectivity AMP Connectors | 0.163 in | 4.14 mm | Brass | Solder | Male Pin | White | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 150 Áin | 3.81 Ám | Tin-Lead | Circular | 600 V | 2 | Locking Ramp | Through Hole | 105 ░C | -55 C | 4.14 mm | 0.163 in | 6 | Shrouded - 4 Wall | 4.45 mm | 0.175 in | All | UL94 V-0 | Board to Cable/Wire | Header | Tin-Lead | 19.15 mm | 0.754 in | 9.5 A |
