EFM-471 Series
Manufacturer: East Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

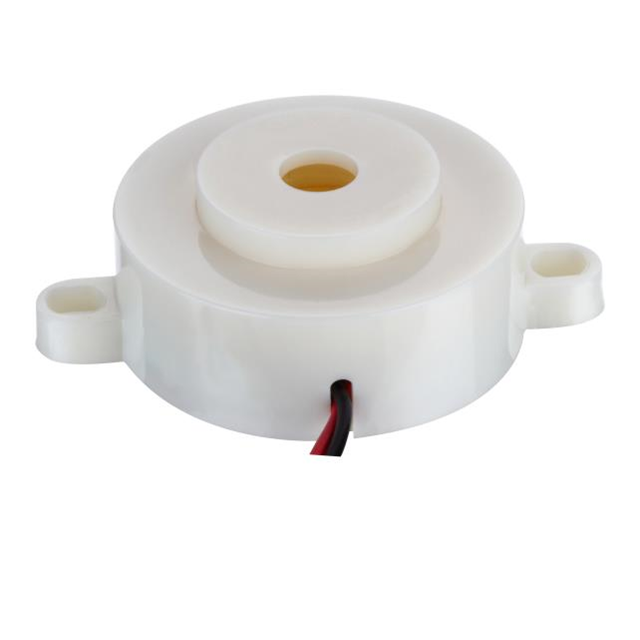

BUZZER 24V 37.8MM WIRE
| Part | Operating Mode | Termination | Height - Seated (Max) | Frequency | Voltage Range (Max) | Voltage Range (Min) | Sound Pressure Level (SPL) | Operating Temperature (Max) | Operating Temperature (Min) | Current - Supply | Size / Dimension Diameter | Voltage - Rated | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 East Electronics | Continuous | Wire Leads | 0.563 in | 3.7 kHz | 30 VDC | 18 VDC | 90 dB | 70 °C | -20 °C | 20 mA | 1.488 in | 24 VAC | Wire Lead |
