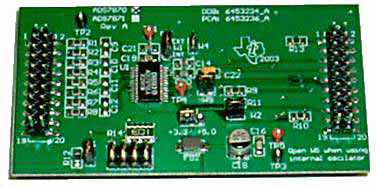

ADS7870 Series
12-Bit ADC, MUX, PGA and Internal Reference Data Acquisition System
Manufacturer: Texas Instruments
Catalog
12-Bit ADC, MUX, PGA and Internal Reference Data Acquisition System
Key Features
• PGA Gains: 1, 2, 4, 5, 8, 10, 16, 20V/VProgrammable Input (Up to 4-channel Differential/Up to 8-channel Single-Ended or Some Combination)1.15-V, 2.048-V or 2.5-V Internal ReferenceSPI/DSP Compatible Serial Interface (≤20 MHz)Throughput Rate: 52 kSamples/secError/Overload IndicatorProgrammable Output 2s Complement/Binary2.7-V to 5.5-V Single-Supply Operation4-Bit Digital I/O Via Serial InterfacePin Compatible With ADS7871SSOP-28 PackageAPPLICATIONSPortable Battery-Powered SystemsLow-Power InstrumentationLow-Power Control SystemsSmart Sensor ApplicationsQSPI and SPI are trademarks of Motorola, Inc.Microwire is a trademark of National Semiconductor Corporation.All other trademarks are the property of their respective owners.PGA Gains: 1, 2, 4, 5, 8, 10, 16, 20V/VProgrammable Input (Up to 4-channel Differential/Up to 8-channel Single-Ended or Some Combination)1.15-V, 2.048-V or 2.5-V Internal ReferenceSPI/DSP Compatible Serial Interface (≤20 MHz)Throughput Rate: 52 kSamples/secError/Overload IndicatorProgrammable Output 2s Complement/Binary2.7-V to 5.5-V Single-Supply Operation4-Bit Digital I/O Via Serial InterfacePin Compatible With ADS7871SSOP-28 PackageAPPLICATIONSPortable Battery-Powered SystemsLow-Power InstrumentationLow-Power Control SystemsSmart Sensor ApplicationsQSPI and SPI are trademarks of Motorola, Inc.Microwire is a trademark of National Semiconductor Corporation.All other trademarks are the property of their respective owners.
Description
AI
The ADS7870 (US patents 6140872, 6060874) is a complete low-power data acquisition system on a single chip. It consists of a 4-channel differential/8-channel single-ended multiplexer, precision programmable gain amplifier, 12-bit successive approximation analog-to-digital (A/D) converter, and a precision voltage reference.
The programmable-gain amplifier provides high input impedance, excellent gain accuracy, good common-mode rejection, and low noise.
For many low-level signals, no external amplification or impedance buffering is needed between the signal source and the A/D input.
The offset voltage of the PGA is auto zeroed. Gains of 1, 2, 4, 5, 8, 10, 16, and 20 V/V allow signals as low as 125 mV to produce full-scale digital outputs.
The ADS7870 contains an internal reference, which is trimmed for high initial accuracy and stability vs temperature. Drift is typically 10 ppm/°C. An external reference can be used in situations where multiple ADS7870s share a common reference.
The serial interface allows the use of SPI™, QSPI™, Microwire™, and 8051-family protocols, without glue logic.
The ADS7870 (US patents 6140872, 6060874) is a complete low-power data acquisition system on a single chip. It consists of a 4-channel differential/8-channel single-ended multiplexer, precision programmable gain amplifier, 12-bit successive approximation analog-to-digital (A/D) converter, and a precision voltage reference.
The programmable-gain amplifier provides high input impedance, excellent gain accuracy, good common-mode rejection, and low noise.
For many low-level signals, no external amplification or impedance buffering is needed between the signal source and the A/D input.
The offset voltage of the PGA is auto zeroed. Gains of 1, 2, 4, 5, 8, 10, 16, and 20 V/V allow signals as low as 125 mV to produce full-scale digital outputs.
The ADS7870 contains an internal reference, which is trimmed for high initial accuracy and stability vs temperature. Drift is typically 10 ppm/°C. An external reference can be used in situations where multiple ADS7870s share a common reference.
The serial interface allows the use of SPI™, QSPI™, Microwire™, and 8051-family protocols, without glue logic.
