OSTVN04 Series

Catalog

TERM BLK 4P SIDE ENT 2.54MM PCB

Part	Contact Material - Plating	Housing Material	Torque - Screw	Torque - Screw	Screw Thread	Screw Material - Plating	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Voltage	Color	Mounting Type	Wire Termination	Positions Per Level	Mating Orientation	Current	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]

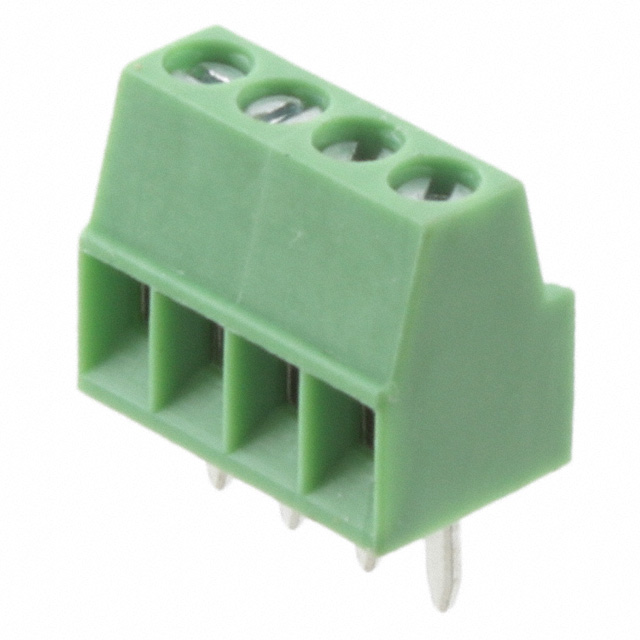

On Shore Technology Inc. OSTVN04A150	Brass	Thermoplastic	1.3 Lb-In	0.15 Nm	M1.6	Steel - Zinc Plated	Brass	-30 ░C	105 ░C	0.1 "	2.54 mm	150 V	Green	Through Hole	Screw - Rising Cage Clamp	4	Horizontal with Board	6 A	1
On Shore Technology Inc. OSTVN04A100	Brass	Thermoplastic	1.3 Lb-In	0.15 Nm	M1.6	Steel - Zinc Plated	Brass	-30 ░C	105 ░C	0.1 "	2.54 mm	150 V	Black	Through Hole	Screw - Rising Cage Clamp	4	Horizontal with Board	6 A	1	19.5 AWG	30 AWG
