VI03 Series

Catalog

TERM BLK 3POS TOP ENTRY 5MM PCB

Part	Wire Gauge [Min]	Wire Gauge [Max]	Screw Material - Plating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Features	Clamp Material - Plating	Housing Material	Mounting Type	Current	Wire Termination	Screw Thread	Positions Per Level	Mating Orientation	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Voltage	Contact Material - Plating
Amphenol Anytek VI0301500000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Brass - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Vertical with Board	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	300 V
Amphenol Anytek VI0301520000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Brass - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Horizontal with Board	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	300 V
Amphenol Anytek VI0341520000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Brass - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Horizontal with Board	0.4 Nm	3.5 Lb-In	7.5 mm	0.295 in	300 V

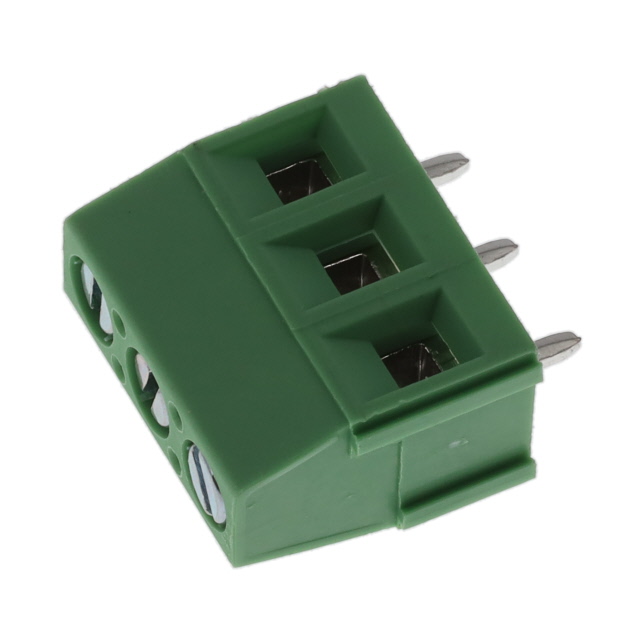

Amphenol Anytek VI0321520000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Brass - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Horizontal with Board	0.4 Nm	3.5 Lb-In	5.08 mm	0.2 in	300 V
Amphenol Anytek VI0321550000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Copper Alloy - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Horizontal with Board	0.4 Nm	3.5 Lb-In	5.08 mm	0.2 in	300 V	Copper Alloy - Tin Plated
Amphenol Anytek VI0341500000G	12 AWG	28 AWG	Steel Zinc Plated	Green	-40 °C	115 °C	1	Interlocking (Side)	Brass - Nickel Plated	Thermoplastic	Through Hole	16 A	Screw - Rising Cage Clamp	M3	3	Vertical with Board	0.4 Nm	3.5 Lb-In	7.5 mm	0.295 in	300 V
