053324 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 6POS 2MM
| Part | Number of Positions | Contact Length - Mating | Contact Length - Mating | Fastening Type | Insulation Color | Features | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Shrouding | Number of Rows | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] | Style | Connector Type | Insulation Material | Termination | Contact Shape | Number of Positions Loaded | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Post | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 6 | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin |
 Molex | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin | |

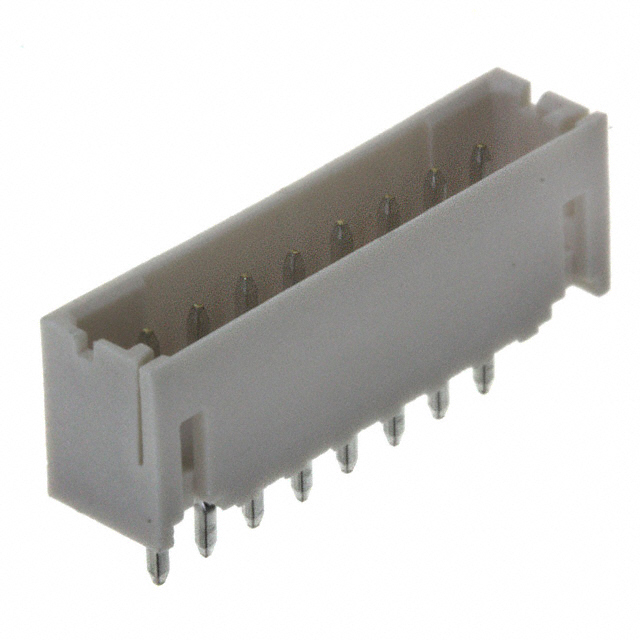

 Molex | 8 | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin |

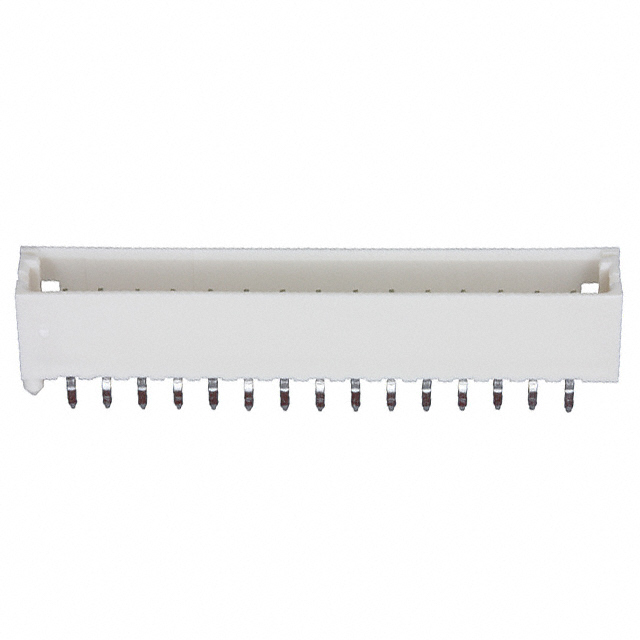

 Molex | 15 | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin |
 Molex | 13 | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin |

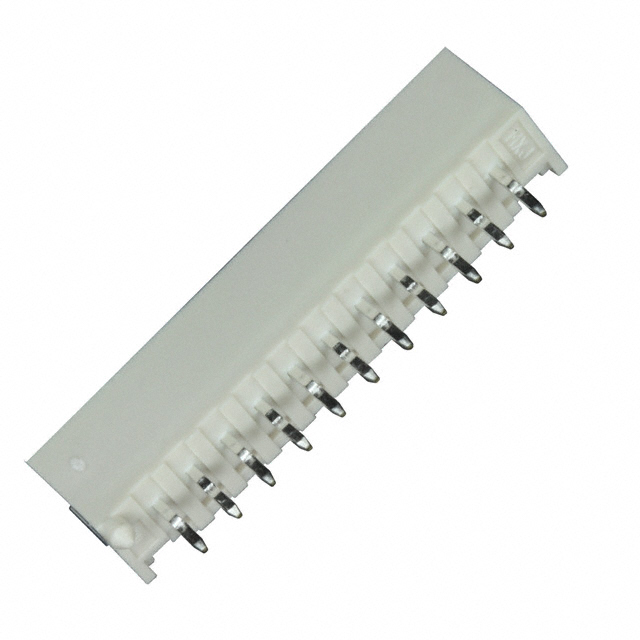

 Molex | 11 | 0.136 in | 3.45 mm | Detent Lock | Natural | Board Guide | 3.5 mm | 0.138 in | UL94 V-0 | Shrouded - 4 Wall | 1 | Brass | 0.079 in | 2 mm | Board to Cable/Wire | Header | Polyamide (PA66) Nylon 6/6 Glass Filled | Kinked Pin Solder | Square | All | 6 mm | 0.236 in | Through Hole | Tin | Male Pin |
Molex | 2 | Detent Lock | Natural | Board Guide | Shrouded - 4 Wall | 1 | 0.079 in | 2 mm | Board to Cable/Wire | Header | Press-Fit Solder | All | Through Hole | Male Pin |
