5450/5 Series

Catalog

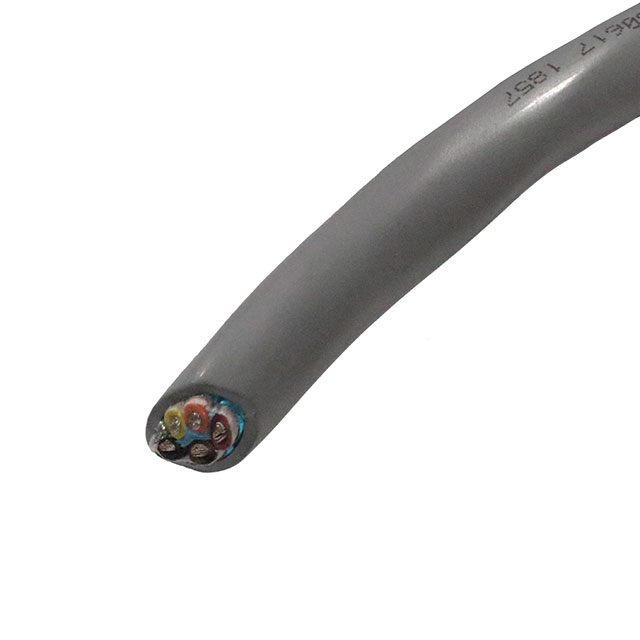

CABLE 5COND 14AWG SHLD

Part	Shield Coverage	Usage	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Ratings	Number of Conductors	Wire Gauge	Length	Length	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Conductor Material	Shield Type	Voltage	Length [x]	Length [x]
ALPHA WIRE 5450/5 SL001	100 %	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	1.6 mm	0.063 in	Multi-Conductor	12.93 mm	0.509 in	Biological Compatibility Drain Wire Rip Cord	ISO 10993 UL Style 2501	5	13.5 AWG	1000 ft	304.8 m	Slate	41	30 AWG	Aluminum	Copper Tinned	Foil	600 V
ALPHA WIRE 5450/5 SL002	100 %	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	1.6 mm	0.063 in	Multi-Conductor	12.93 mm	0.509 in	Biological Compatibility Drain Wire Rip Cord	ISO 10993 UL Style 2501	5	13.5 AWG			Slate	41	30 AWG	Aluminum	Copper Tinned	Foil	600 V	500 '	152.4 m
ALPHA WIRE 5450/5 SL199	100 %	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	1.6 mm	0.063 in	Multi-Conductor	12.93 mm	0.509 in	Biological Compatibility Drain Wire Rip Cord	ISO 10993 UL Style 2501	5	13.5 AWG			Slate	41	30 AWG	Aluminum	Copper Tinned	Foil	600 V
ALPHA WIRE 5450/5 BK199	100 %	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	1.6 mm	0.063 in	Multi-Conductor	12.93 mm	0.509 in	Biological Compatibility Drain Wire Rip Cord	ISO 10993 UL Style 2501	5	13.5 AWG	1000 ft	304.8 m	Black	41	30 AWG	Aluminum	Copper Tinned	Foil	600 V
