2421C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

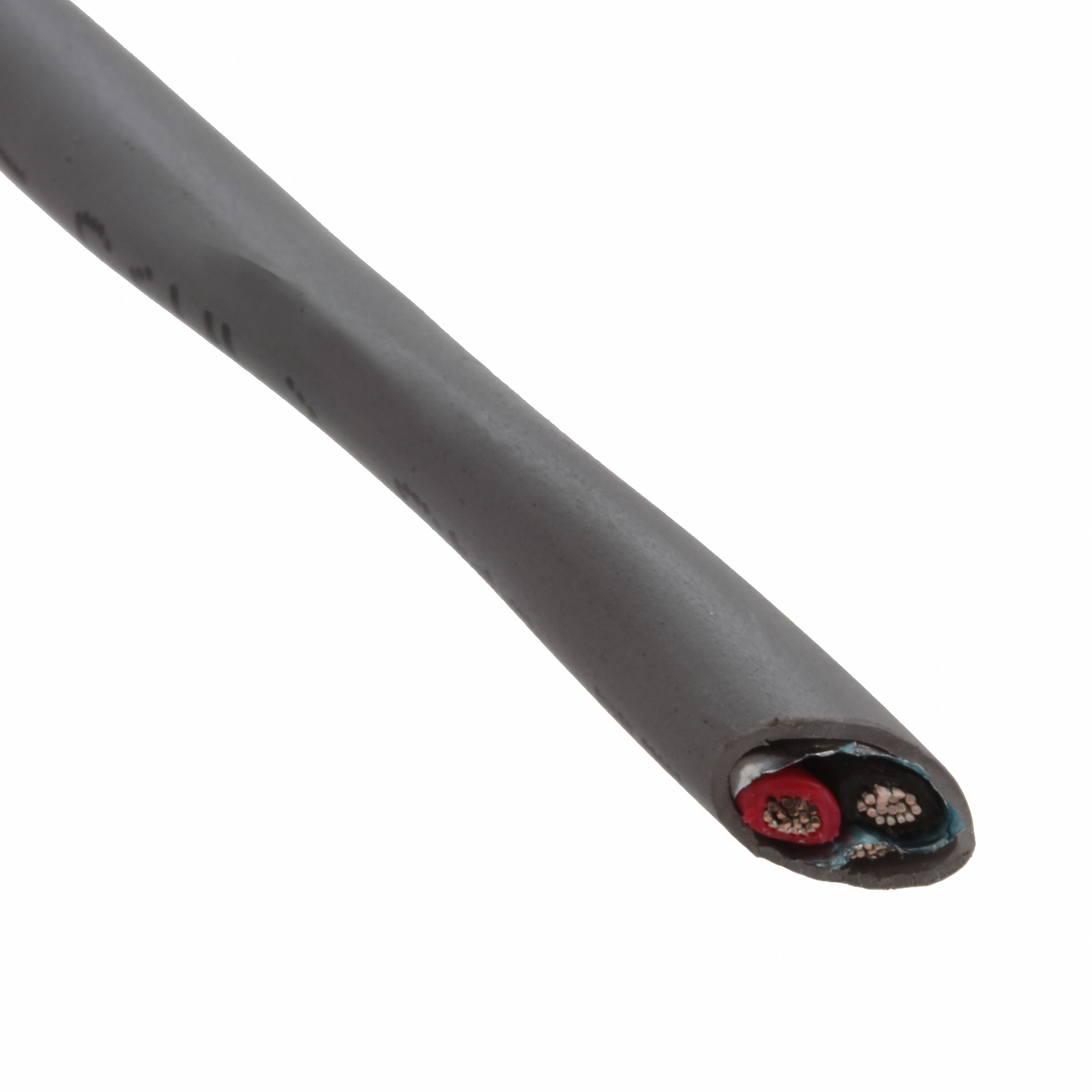

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 18 AWG, 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Length | Length | Voltage | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket Color | Shield Type | Features | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 152.4 m | 500 ft | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | Slate | Foil | Drain Wire | 18 AWG | Polyethylene (PE) | 0.202 in | 5.13 mm | Copper Tinned | 16 | 30 AWG | 2 |
ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | Slate | Foil | Drain Wire | 18 AWG | Polyethylene (PE) | 0.202 in | 5.13 mm | Copper Tinned | 16 | 30 AWG | 2 |
ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | Slate | Foil | Drain Wire | 18 AWG | Polyethylene (PE) | 0.202 in | 5.13 mm | Copper Tinned | 16 | 30 AWG | 2 |
