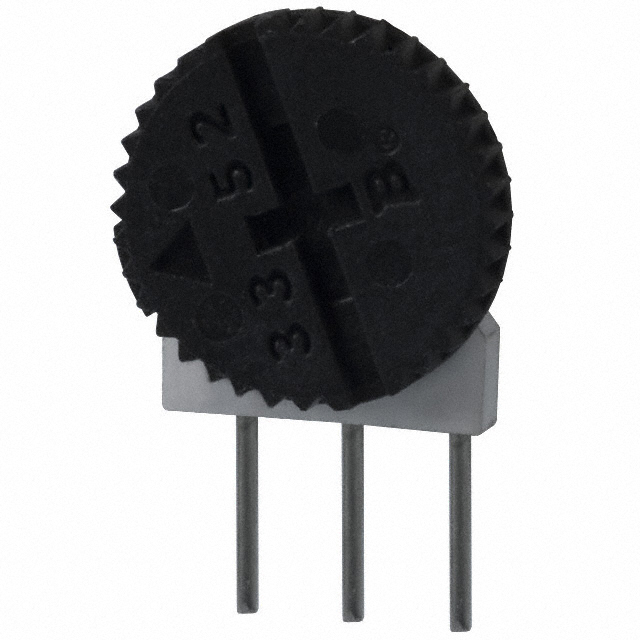

3352W Series

Catalog

RES CERMET TRIMMER 2K OHM 20% 0.5W(1/2W) 1(ELEC)/1(MECH)TURN (8.89 X 5.33 X 9.53MM) PIN THRU-HOLE BAG

Part	Resistance	Mounting Type	Adjustment Type	Termination	Number of Turns	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Tolerance	Power (Watts)	Power (Watts)
Bourns Inc. 3352W-1-202LF	2 kOhms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-103	10000 Ohms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-100LF	10 Ohms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-253	25 kOhms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-103LF	10000 Ohms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-503	50000 Ohms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-205LF	2 MOhms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-203LF	20 kOhms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-503LF	50000 Ohms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
Bourns Inc. 3352W-1-501LF	0.5 kOhms	Through Hole	Side Adjustment	PC Pins	1	0.35 in	0.21 in	8.89 mm	5.33 mm	20 %	0.5 W	0.5 W
