2383938 Series

Catalog

TERMI-BLOK SMD MOUNT 180_2P_5 MM

Part	Screw Thread	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Housing Material	Current	Color	Voltage	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Positions Per Level	Mounting Type	Screw Material - Plating	Features	Clamp Material - Plating	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Mating Orientation

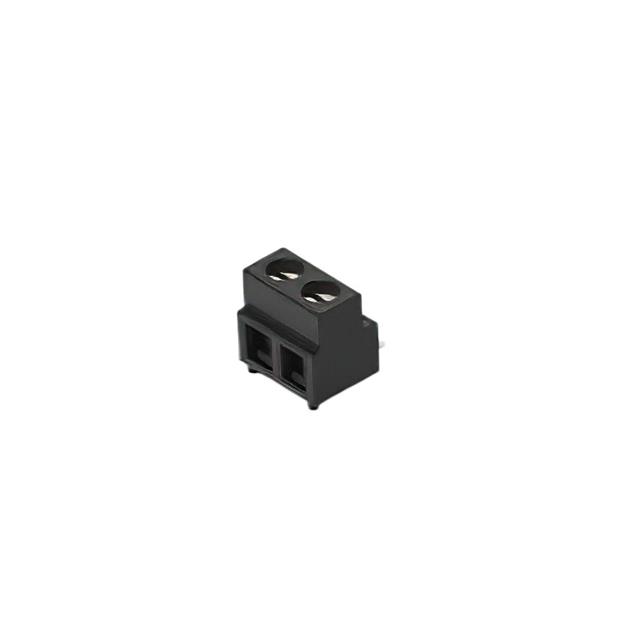

TE Connectivity Raychem Cable Protection 2383938-2	M3	5 mm	0.197 in	30 AWG	16 AWG	Polyamide (PA) Nylon	13.5 A	Black	300 V	Screw - Rising Cage Clamp	-40 °C	105 ░C	1	2	Surface Mount	Copper Alloy - Nickel Plated	Board Guide	Copper Alloy - Nickel Plated	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Horizontal with Board

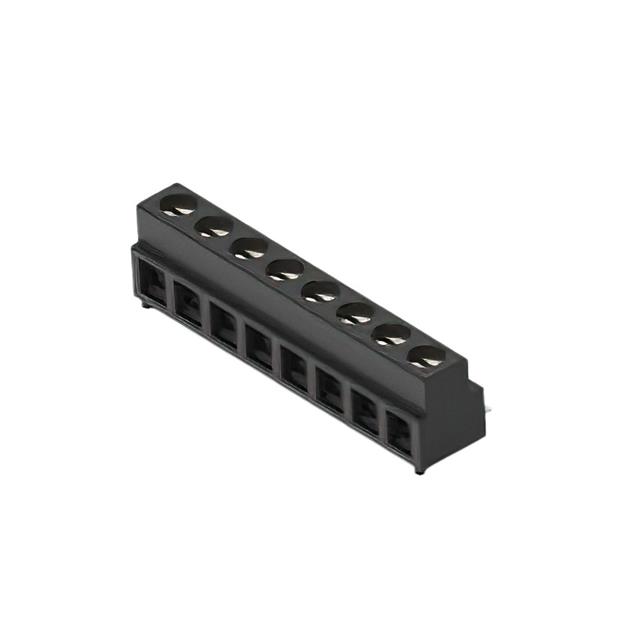

TE Connectivity Raychem Cable Protection 2383938-8	M3	5 mm	0.197 in	30 AWG	16 AWG	Polyamide (PA) Nylon	13.5 A	Black	300 V	Screw - Rising Cage Clamp	-40 °C	105 ░C	1	8	Surface Mount	Copper Alloy - Nickel Plated	Board Guide	Copper Alloy - Nickel Plated	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Horizontal with Board
