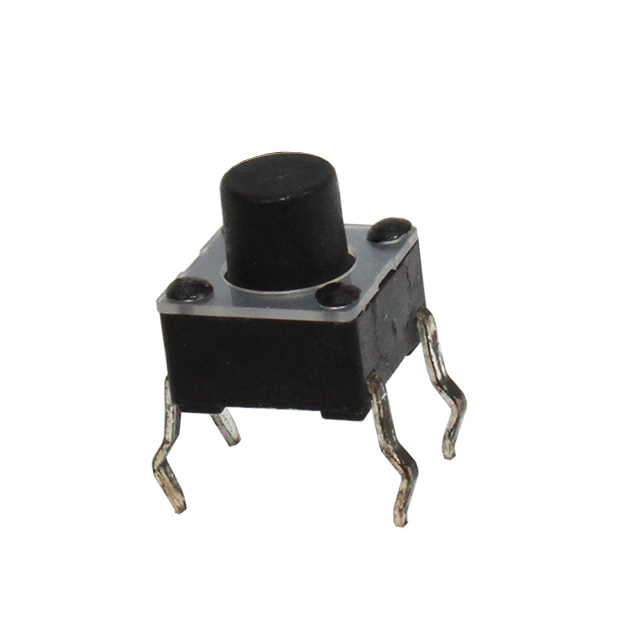

CT11025 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Operating Force	Contact Rating @ Voltage	Switch Function	Actuator Height off PCB, Vertical [z]	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Illumination	Outline [x]	Outline [y]	Actuator Orientation
CIT Relay and Switch CT11025.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	160 gf	0.05 A 50 VDC	Off-Mom	5 mm	Standard	SPST-NO	85 °C	-40 C	PC Pin	Through Hole	Non-Illuminated	6 mm	6 mm	Top Actuated
CIT Relay and Switch CT11025.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	100 gf	0.05 A 50 VDC	Off-Mom	5 mm	Plunger for Cap	SPST-NO	85 °C	-40 C	PC Pin	Through Hole	Non-Illuminated	6 mm	6 mm	Top Actuated
CIT Relay and Switch CT11025.0F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	260 gf	0.05 A 50 VDC	Off-Mom	5 mm	Plunger for Cap	SPST-NO	85 °C	-40 C	PC Pin	Through Hole	Non-Illuminated	6 mm	6 mm	Top Actuated
