MS3106E16 Series

Catalog

MIL-DTL 5015 SERIES I

Part	Cable Opening	Cable Opening	Mounting Type	Number of Positions	Fastening Type	Insert Material	Applications	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Features	Qualification	Grade	Connector Type	Ingress Protection	Orientation [x]	Primary Material	Color	Shell Finish	Shielding	Shell Material	Shell Size - Insert	Orientation	Voltage Rating	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]
ITT Cannon, LLC MS3106E169SX	12.7 mm	0.5 in	Free Hanging (In-Line)	4	Threaded	Plastic	Aviation Industrial Marine Military	Silver	-55 C	125 °C	Copper Alloy	Backshell Coupling Nut	MIL-DTL-5015	Military	Plug Female Sockets	Environment Resistant	X	Metal	Olive Drab	Olive Drab Cadmium	Unshielded	Aluminum Alloy
ITT Cannon, LLC MS3106E16S-1PF187			Free Hanging (In-Line)	7	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Male Pins	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-1	N (Normal)	500 VAC 700 VDC	22 A
ITT Cannon, LLC MS3106E16S6S	12.7 mm	0.5 in	Free Hanging (In-Line)		Threaded	Plastic	Aviation Industrial Marine Military	Silver	-55 C	125 °C	Copper Alloy	Backshell Coupling Nut	MIL-DTL-5015	Military	Plug Female Sockets	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium	Unshielded	Aluminum Alloy	16S-6	N (Normal)	500 VAC 700 VDC	13 A
ITT Cannon, LLC MS3106E16S-8SF187			Free Hanging (In-Line)	5	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Female Sockets	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-8	N (Normal)	500 VAC 700 VDC	22 A

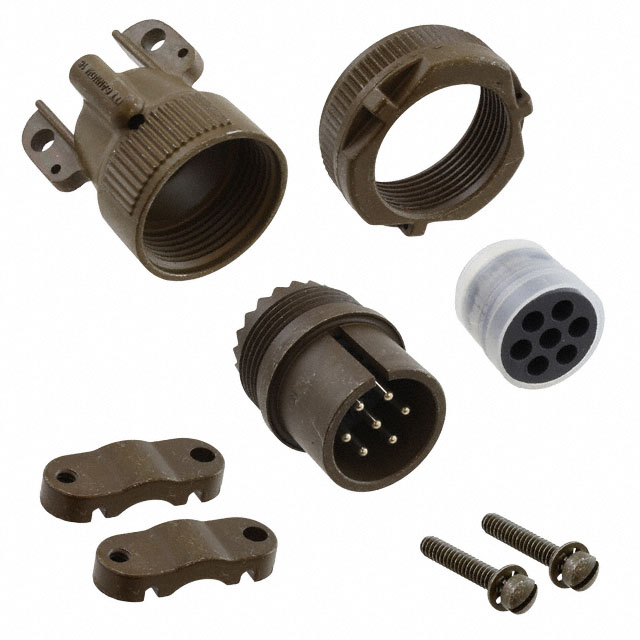

ITT Cannon, LLC MS3106E16S-1P			Free Hanging (In-Line)	7	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Male Pins	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-1	N (Normal)	500 VAC 700 VDC	22 A
ITT Cannon, LLC MS3106E16S-1PW			Free Hanging (In-Line)	7	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Male Pins	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-1	W	500 VAC 700 VDC	22 A
ITT Cannon, LLC MS3106E1612P	12.7 mm	0.5 in	Free Hanging (In-Line)	1	Threaded	Plastic	Aviation Industrial Marine Military	Silver	-55 C	125 °C	Copper Alloy	Backshell Coupling Nut	MIL-DTL-5015	Military	Plug Male Pins	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium	Unshielded	Aluminum Alloy		N (Normal)	500 VAC 700 VDC	23 A	16	12
ITT Cannon, LLC MS3106E16S-1SF187			Free Hanging (In-Line)	7	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Female Sockets	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-1	N (Normal)	500 VAC 700 VDC	22 A
ITT Cannon, LLC MS3106E16-11S			Free Hanging (In-Line)	2	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Female Sockets	Environment Resistant		Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy		N (Normal)	500 VAC 700 VDC	41 A	11	16
ITT Cannon, LLC MS3106E16S-8PX			Free Hanging (In-Line)	5	Threaded			Silver	-55 C	125 °C		Cable Clamp Coupling Nut	MIL-DTL-5015	Military	Plug Male Pins	Environment Resistant	X	Metal	Olive Drab	Olive Drab Cadmium		Aluminum Alloy	16S-8		500 VAC 700 VDC	22 A
