FI2D024 Series
Manufacturer: Belden Inc.
Beta
⌘K

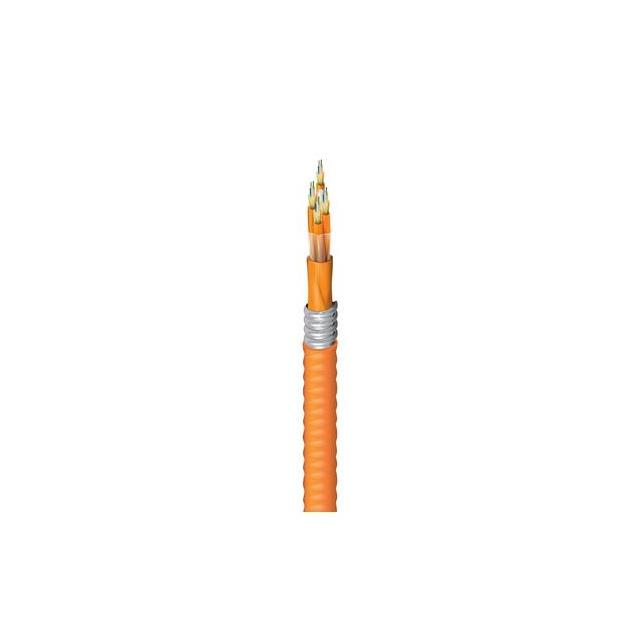

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Style | Cladding Diameter [diameter] | Ratings | Features | Jacket (Insulation) Material | Core Diameter [diameter] | Tensile Strength | Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 70 °C | 0.325 in | 8.26 mm | Multiple Fibers | 125 µm | OFNR | 24 Fibers Rip Cord | Poly-Vinyl Chloride (PVC) | 50 µm | 40.8 kg | Multimode | Orange | ||
 Belden Inc. | -20 ░C | 70 °C | 0.93 " | Multiple Fibers | 125 µm | OFCR | Armored | Poly-Vinyl Chloride (PVC) | 50 µm | 40.8 kg | Multimode | Orange | 23.62 mm | 24 | |
Belden Inc. | 0 °C | 70 °C | 0.33 in | 8.38 mm | Multiple Fibers | 125 µm | OFNP | 24 Fibers Rip Cord | Poly-Vinyl Chloride (PVC) | 50 µm | 40.8 kg | Multimode | Orange | ||
 Belden Inc. | 0 °C | 70 °C | 0.841 in | 21.36 mm | Multiple Fibers | 125 µm | OFCP | Armored | Poly-Vinyl Chloride (PVC) | 50 µm | 40.8 kg | Multimode | Orange | 24 |
