ECA-1VM Series

Manufacturer: Panasonic Electronic Components

Catalog

ELECTROLYTIC CAPACITOR, 100 ΜF, 35 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 85°C, POLAR

Part	Applications	Package / Case	Capacitance	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Polarization	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Voltage - Rated	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECA-1VM101I	General Purpose	Can Radial	100 µF	2000 Hrs	85 °C	-40 C	210 mA	0.248 "	6.3 mm	Through Hole	Polar	2.5 mm	0.098 in	357 mA	12.2 mm	0.48 in	35 V	20 %

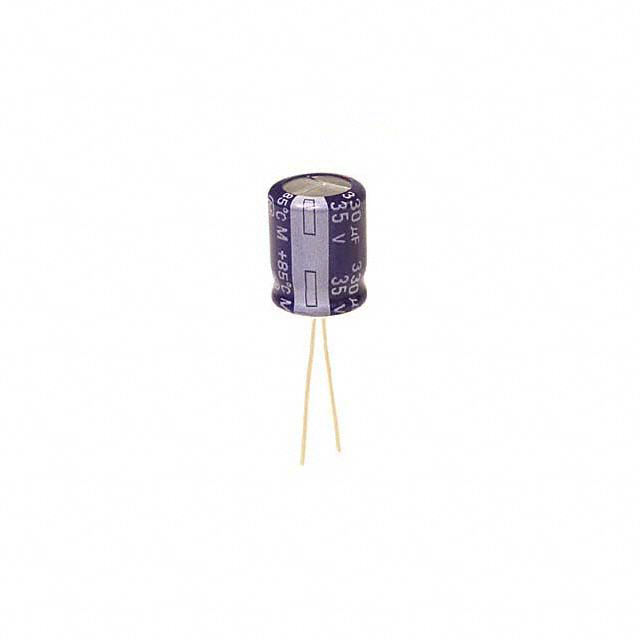

Panasonic Electronic Components ECA-1VM331	General Purpose	Can Radial	330 µF	2000 Hrs	85 °C	-40 C	440 mA	0.394 in	10 mm	Through Hole	Polar	5 mm	0.197 "	748 mA		0.531 in	35 V	20 %	13.5 mm
Panasonic Electronic Components ECA-1VM100I	General Purpose	Can Radial	10 µF	2000 Hrs	85 °C	-40 C	60 mA	0.197 in	5 mm	Through Hole	Polar	2.5 mm	0.098 in	102 mA	12 mm	0.472 in	35 V	20 %
Panasonic Electronic Components ECA-1VM221B	General Purpose	Can Radial	220 µF	2000 Hrs	85 °C	-40 C	350 mA	0.315 in	8 mm	Through Hole	Polar	5 mm	0.197 "	595 mA			35 V	20 %	0.492 in	12.5 mm
Panasonic Electronic Components ECA-1VM220	General Purpose	Can Radial	22 µF	2000 Hrs	85 °C	-40 C		0.197 in	5 mm	Through Hole	Polar	2 mm	0.079 in	161.5 mA	12 mm	0.472 in	35 V	20 %

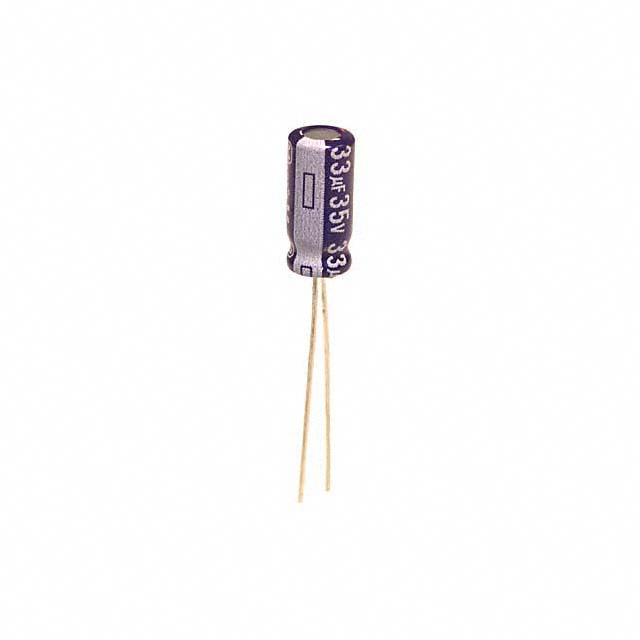

Panasonic Electronic Components ECA-1VM330	General Purpose	Can Radial	33 ÁF	2000 Hrs	85 °C	-40 C		0.197 in	5 mm	Through Hole	Polar	2 mm	0.079 in	187 mA	12 mm	0.472 in	35 V	20 %

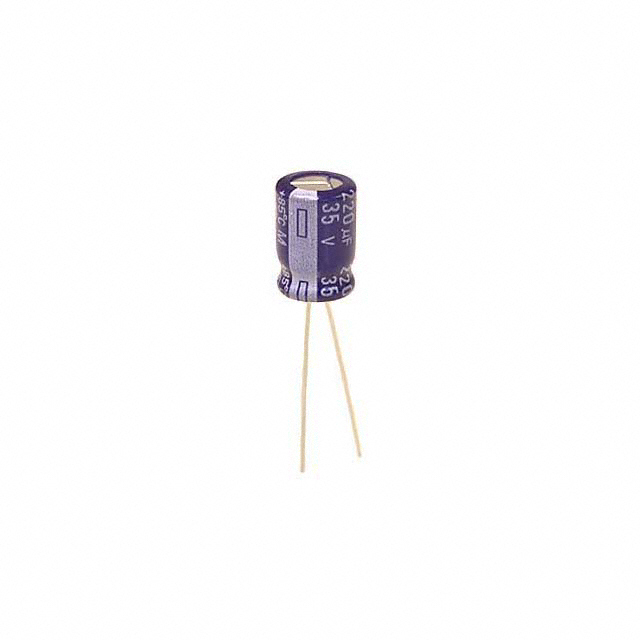

Panasonic Electronic Components ECA-1VM221	General Purpose	Can Radial	220 µF	2000 Hrs	85 °C	-40 C	350 mA	0.315 in	8 mm	Through Hole	Polar	3.5 mm	0.138 in	595 mA			35 V	20 %	0.492 in	12.5 mm
Panasonic Electronic Components ECA-1VM470B	General Purpose	Can Radial	47 µF	2000 Hrs	85 °C	-40 C	130 mA	0.197 in	5 mm	Through Hole	Polar	5 mm	0.197 "	221 mA	12 mm	0.472 in	35 V	20 %

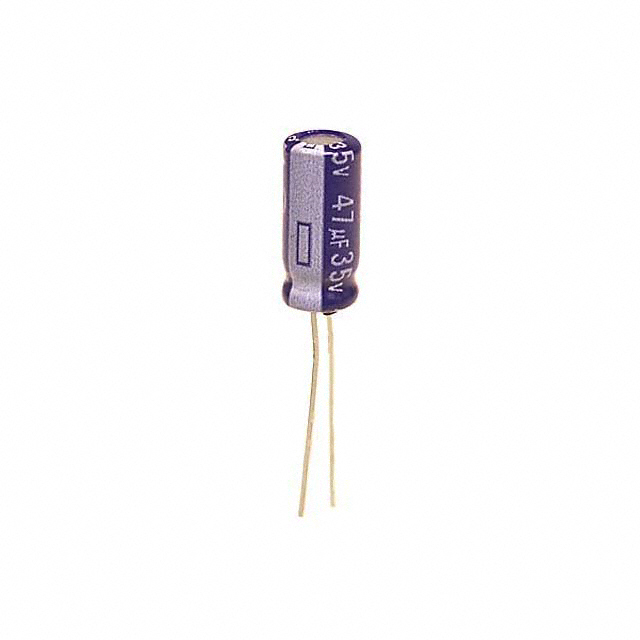

Panasonic Electronic Components ECA-1VM470	General Purpose	Can Radial	47 µF	2000 Hrs	85 °C	-40 C	130 mA	0.197 in	5 mm	Through Hole	Polar	2 mm	0.079 in	221 mA	12 mm	0.472 in	35 V	20 %
Panasonic Electronic Components ECA-1VM330B	General Purpose	Can Radial	33 ÁF	2000 Hrs	85 °C	-40 C		0.197 in	5 mm	Through Hole	Polar	5 mm	0.197 "	187 mA	12 mm	0.472 in	35 V	20 %
