MMC5633 Series
Manufacturer: Memsic Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

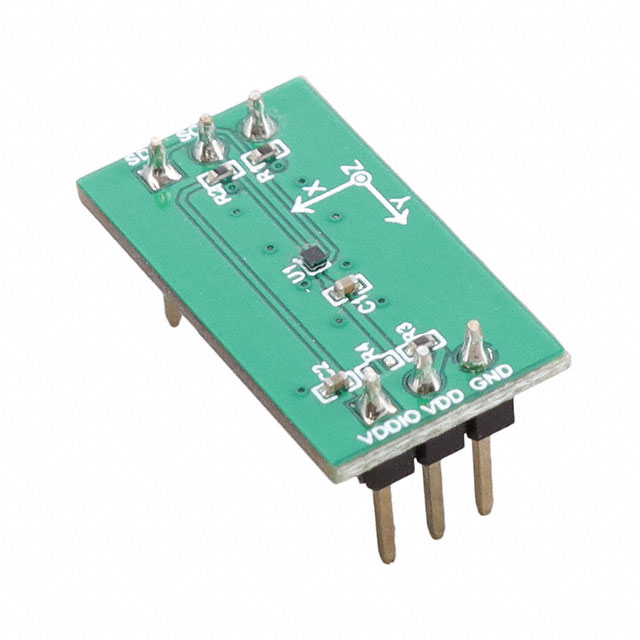

EVAL BOARD FOR MMC5633
| Part | Supplied Contents | Interface | Utilized IC / Part | Sensor Type | Contents | Sensing Range (Min) | Sensing Range (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Min) | Operating Temperature (Max) | Output Type | Axis | Resolution | Package Name | Package Length | Package Width | Mounting Type | Bandwidth | Package / Case | Features | Current - Supply (Max) | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Memsic Inc. | Board(s) | I2C I3C | MMC5633 | AMR (Anisotropic Magnetoresistive) Magnetic | Board | -30 Gauss | 30 Gauss | 1.62 V | 3.6 V | ||||||||||||||

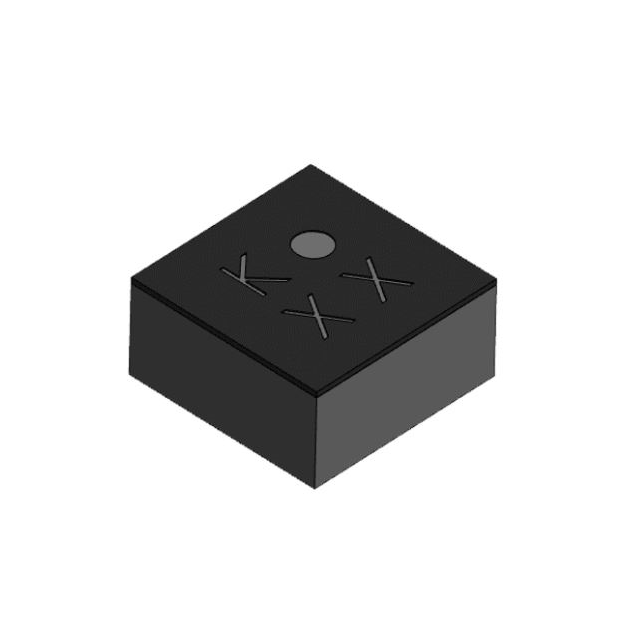

 Memsic Inc. | -3 mT | 3 mT | 1.62 V | 3.6 V | -40 °C | 85 °C | I2C I3C | X Y Z | 20 b | 4-WLP | 0.85 mm | 0.85 mm | Surface Mount | 1 kHz | 4-WFBGA WLBGA | Temperature Compensated | 4 mA | Magnetoresistive |
