ELFF122 Series

Catalog

TERM BLOCK PLUG 12POS 5.08MM

Part	Color	Number of Positions	Plug Wire Entry	Torque - Screw	Torque - Screw	Number of Levels	Operating Temperature	Wire Strip Length	Contact Mating Finish	Voltage - UL	Mounting Type	Termination Style	Contact Material	Pitch [x]	Pitch [x]	Type	Insulation Height	Insulation Height	Material Flammability Rating	Positions Per Level	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Features
AMPHENOL PCD ELFF12240	Black	12	270 °	0.79 Nm	7 Lb-In	1	105 C	7.87 mm 12.45 mm	Tin	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Copper Alloy	0.2 in	5.08 mm	Plug Female Sockets	30.94 mm	1.218 in	UL94 V-0	12	Polyphenylene Oxide (PPO)	26 AWG	12 AWG	14 AWG

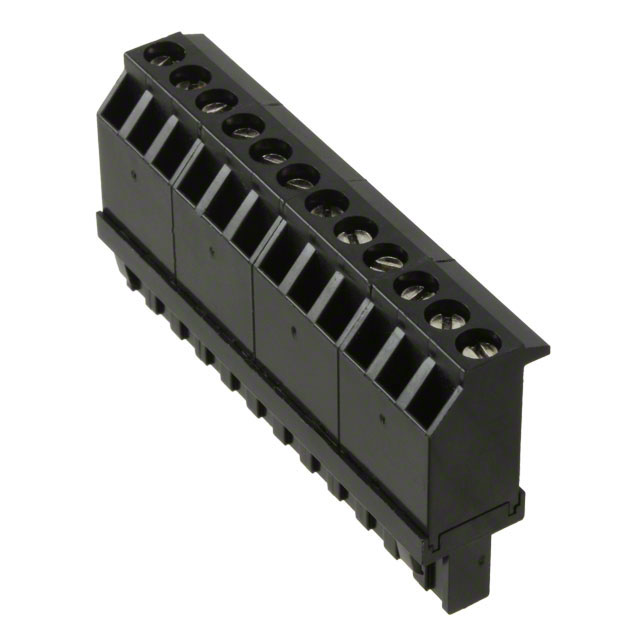

AMPHENOL PCD ELFF12230	Black	12	90 °	0.79 Nm	7 Lb-In	1	105 C	7.87 mm 12.45 mm	Tin	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Copper Alloy	0.2 in	5.08 mm	Plug Female Sockets	30.94 mm	1.218 in	UL94 V-0	12	Polyphenylene Oxide (PPO)	26 AWG	12 AWG	14 AWG	Retention Latches (Wire Side)
