FD1D096 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Style | Ratings | Cladding Diameter [diameter] | Tensile Strength | Core Diameter [diameter] | Features | Features | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

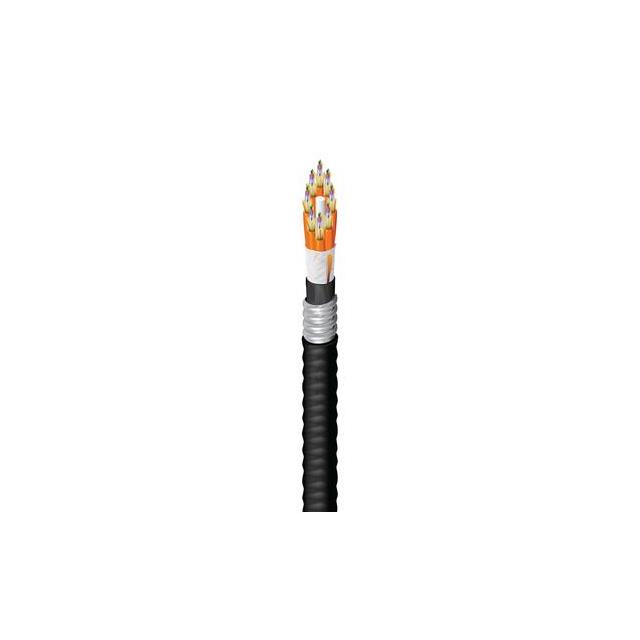

 Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | Black | 32 mm | 1.26 in | Multiple Fibers | OFCP | 125 µm | 81.6 kg | 62.5 µm | Armored | 96 Fibers | Multimode |

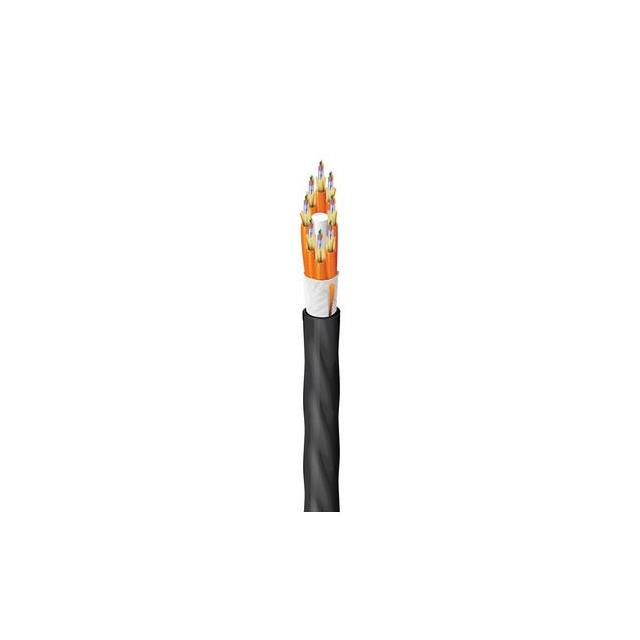

 Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | Black | 22.86 mm | 0.9 " | Multiple Fibers | OFNP | 125 µm | 81.6 kg | 62.5 µm | 96 Fibers Rip Cord | Multimode | |
 Belden Inc. | 70 °C | -40 C | Low Smoke Zero Halogen (LSZH) | Black | 24.82 mm | 0.977 in | Multiple Fibers | OFNR | 125 µm | 81.6 kg | 62.5 µm | 96 Fibers Rip Cord | Multimode |
