CSB04 Series
Manufacturer: MMB Networks
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD 802.15.4 BT CHIP SMD
| Part | Protocol | Mounting Type | RF Family/Standard | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package / Case | Frequency (Max) | Frequency (Min) | Current - Receiving | Modulation | Utilized IC / Part | Power - Output | Operating Temperature (Max) | Operating Temperature (Min) | Serial Interfaces | Antenna Type | Memory Size (Flash) | Memory Type | Memory Size (RAM) | Memory Size (SRAM) | Data Rate | Current - Transmitting | Sensitivity | Interface | Data Rate (Max) | Applications | Modulation or Protocol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

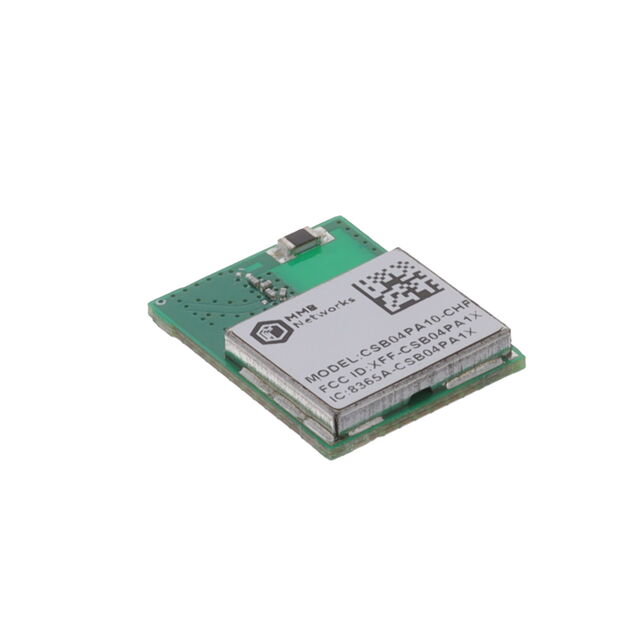

 MMB Networks | Bluetooth v5.0 Thread Zigbee® | Surface Mount | 802.15.4 Bluetooth | 3.6 V | 2 V | Module | 2.4835 GHz | 2.4 GHz | 14 mA | GFSK | EFR32MG13 | 19.2 dBm | 85 °C | -40 °C | UART | Chip Integrated | 512 kB | Flash RAM | 64 kB | 64 kB | 2 Mbps | 138 mA | -103 dBm | ||||

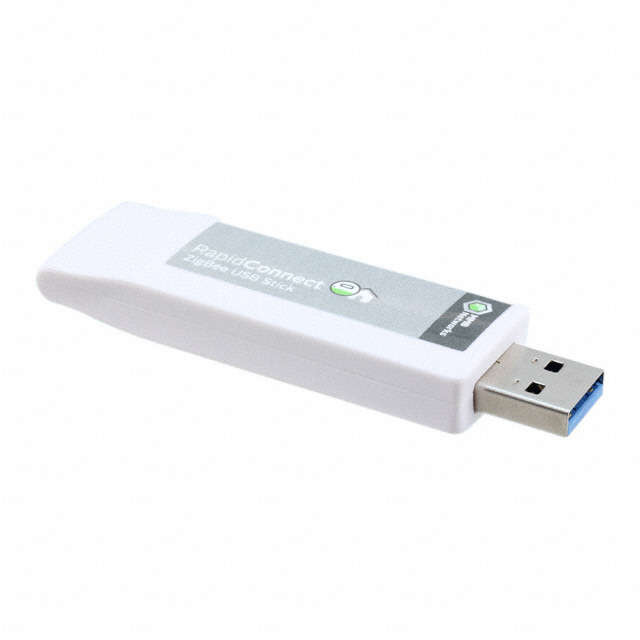

 MMB Networks | 3.6 V | 2 V | 2.4835 GHz | 2.4 GHz | 19.2 dBm | -103 dBm | USB | 921 kpbs | Bluetooth | Bluetooth v5.0 Thread Zigbee® |
