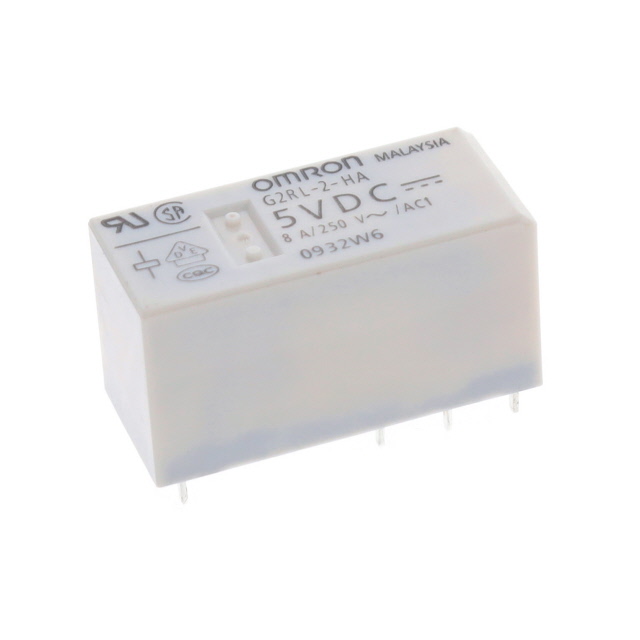

G2RL-2-H Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 5V
| Part | Contact Material | Contact Rating (Current) | Coil Insulation | Coil Current | Must Operate Voltage | Coil Voltage | Release Time | Termination Style | Load - Max Switching | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Contact Form | Mounting Type | Coil Resistance | Must Release Voltage | Approval Agency | Switching Voltage | Relay Type | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Cadmium Free Silver Alloy | 8 A | Class F | 80 mA | 3.5 VDC | 5 VDC | 5 ms | PC Pin | 2400 W 3520 VA | Non Latching | 85 °C | -40 °C | 15 ms | DPDT (2 Form C) | Through Hole | 62.5 Ohms | 0.5 VDC | CQC CSA UR VDE | 300 VDC 440 VAC | General Purpose | Sealed - Flux Protection |
