M30-610 Series

Catalog

CONN HEADER VERT 7POS 1.25MM

Part	Contact Material	Material Flammability Rating	Insulation Material	Style	Contact Type	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating	Contact Shape	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Mated Stacking Heights	Connector Type	Insulation Height	Insulation Height	Shrouding	Insulation Color	Current Rating (Amps)	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Termination
Harwin Inc. M30-6100746	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm	7	Solder
Harwin Inc. M30-6101146	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm	11	Solder
Harwin Inc. M30-6101246	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm	12	Solder
Harwin Inc. M30-6101546	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm	15	Solder

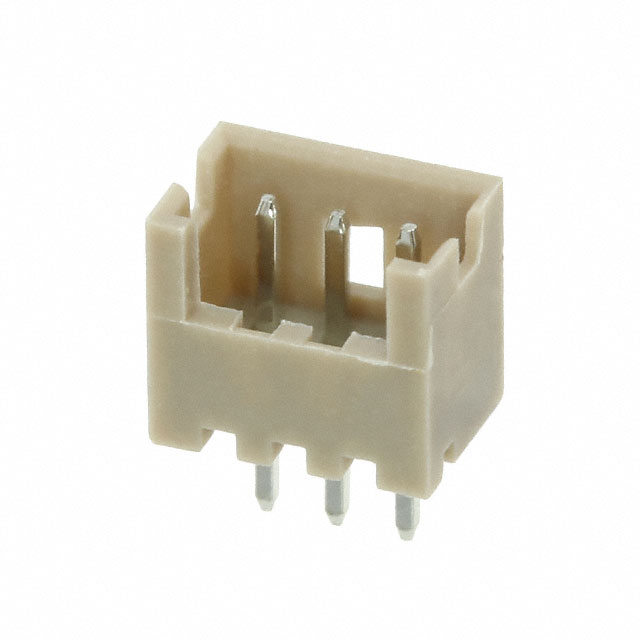

Harwin Inc. M30-6100346	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm		Solder
Harwin Inc. M30-6100846	Brass	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	Male Pin	All	Tin	0.049 in	1.25 mm	Detent Lock	85 °C	-25 °C	Through Hole	100 V	Square	2.03 µm	80 µin	5.4 mm	Header	4.3 mm	0.169 "	Shrouded - 4 Wall	Natural	1 A	1	0.091 "	2.3 mm	8	Solder
