RJSAE508 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

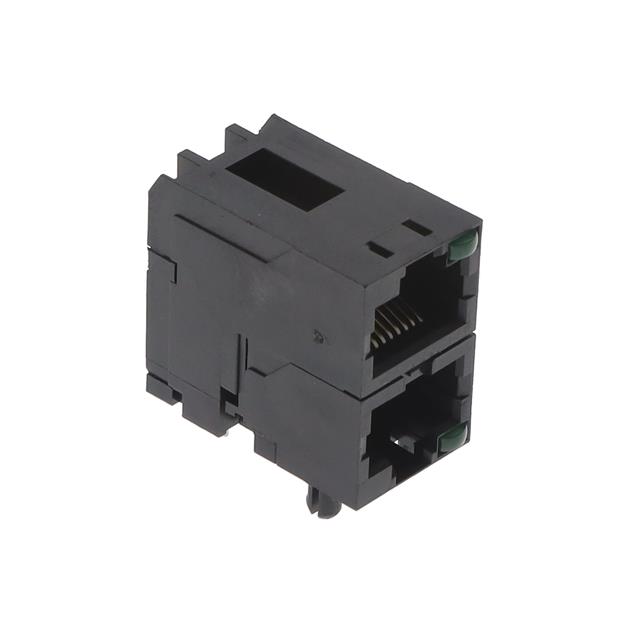

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Connector Type | Termination | Contact Finish | Number of Rows [custom] | Shielding | Contact Material | Features | LED Color | Number of Positions/Contacts | Mounting Type | Tab Direction | Orientation | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green Red | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 8 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green Yellow | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 8 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 8 |
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Yellow - Yellow | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 4 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Yellow - Green | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 8 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Yellow - Green | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 4 |
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 2 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green Red | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 4 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green Red | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 4 |
Amphenol ICC (Commercial Products) | -55 C | 85 °C | 50 µin | 1.27 µm | Thermoplastic | Jack | Solder | Gold | 2 | Unshielded | Phosphor Bronze | Board Lock | Green Red | 8p8c (RJ45 Ethernet) | Through Hole | Up and Down | 90 ° | 2 |
