ISL84543 Series

Manufacturer: Renesas Electronics Corporation

Catalog

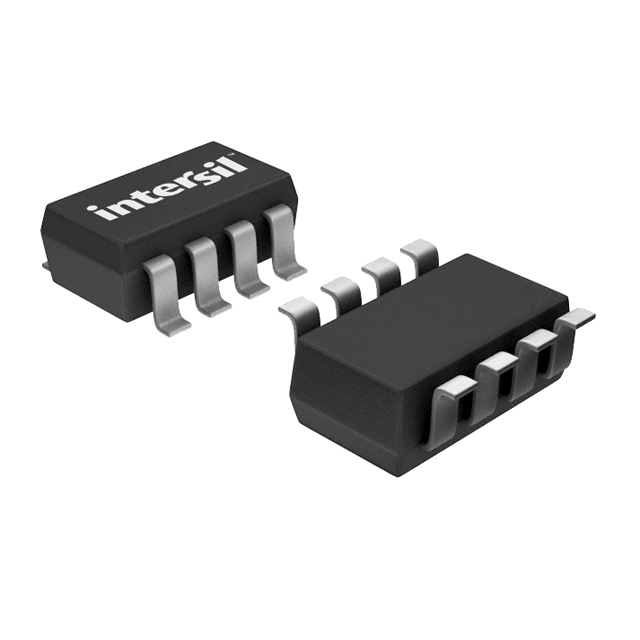

IC SW SPST-NO/NCX2 60OHM SOT23-8

Part	Switch Circuit	Channel-to-Channel Matching (ΔRon)	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Crosstalk	Package / Case	Charge Injection	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
Renesas Electronics Corporation ISL84543IH-T	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	SOT-23-8	1 pC	8 pF	8 pF	60 Ohm	2	85 °C	-40 °C	Surface Mount	SOT-23-8
Renesas Electronics Corporation ISL84543IB	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-SOIC	1 pC	8 pF	8 pF	60 Ohm	2	85 °C	-40 °C	Surface Mount	8-SOIC	3.9 mm	0.154 in
Renesas Electronics Corporation ISL84543CB	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-SOIC	1 pC	8 pF	8 pF	60 Ohm	2	70 °C	0 °C	Surface Mount	8-SOIC	3.9 mm	0.154 in
Renesas Electronics Corporation ISL84543IBZ	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-SOIC	1 pC	8 pF	8 pF	60 Ohm	2	85 °C	-40 °C	Surface Mount	8-SOIC	3.9 mm	0.154 in
Renesas Electronics Corporation ISL84543IB-T	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-SOIC	1 pC	8 pF	8 pF	60 Ohm	2	85 °C	-40 °C	Surface Mount	8-SOIC	3.9 mm	0.154 in
Renesas Electronics Corporation ISL84543CB-T	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-SOIC	1 pC	8 pF	8 pF	60 Ohm	2	70 °C	0 °C	Surface Mount	8-SOIC	3.9 mm	0.154 in
Renesas Electronics Corporation ISL84543CP	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-DIP	1 pC	8 pF	8 pF	60 Ohm	2	70 °C	0 °C	Through Hole	8-PDIP			0.3 in	7.62 mm
Renesas Electronics Corporation ISL84543IPZ	SPST - NO/NC	800 mOhm	100 pA	1:1	100 ns	75 ns	2.7 V	12 V	-90 dB	8-DIP	1 pC	8 pF	8 pF	60 Ohm	2	85 °C	-40 °C	Through Hole	8-PDIP			0.3 in	7.62 mm
