ADP516 Series

Catalog

PRESSURE SENSOR 0.5V TO 4.5V 0KPA TO 500KPA GAGE 6-PIN DIP

Part	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Termination Style	Mounting Type	Output Type	Maximum Pressure	Maximum Pressure [Max]	Package / Case	Accuracy	Port Style	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Applications	Output [Max]	Output [Min]	Features

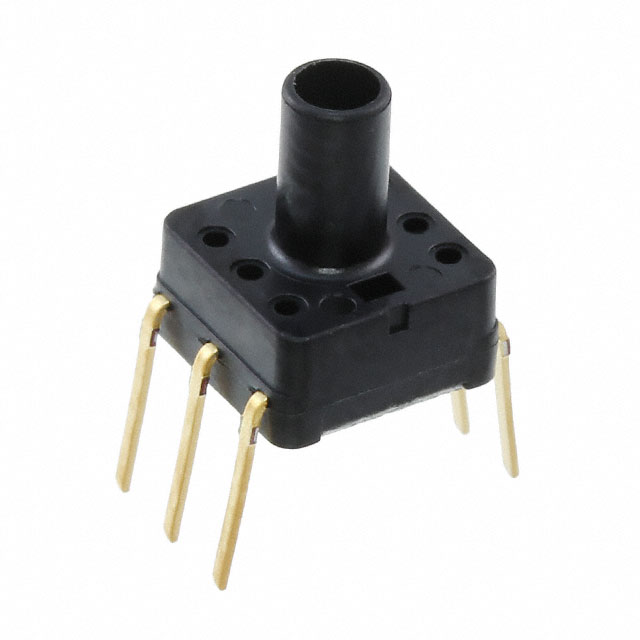

Panasonic Electronic Components ADP5161	72.52 PSI	5 bar	3 mm	0.12 in	Male Tube	PC Pin	Through Hole	Analog Voltage	1000 kPa	145.04 PSI	6-DIP Module	1.25 %	Barbless	-10 °C	60 °C	Vented Gauge	Board Mount	4.5 V	0 mV	Amplified Output Temperature Compensated
Panasonic Electronic Components ADP5160	72.52 PSI	5 bar	3 mm	0.12 in	Male Tube	PC Pin	Through Hole	Analog Voltage	1000 kPa	145.04 PSI	6-DIP Module	1.25 %	Barbless	-10 °C	60 °C	Vented Gauge	Board Mount	4.5 V	0 mV	Amplified Output Temperature Compensated
