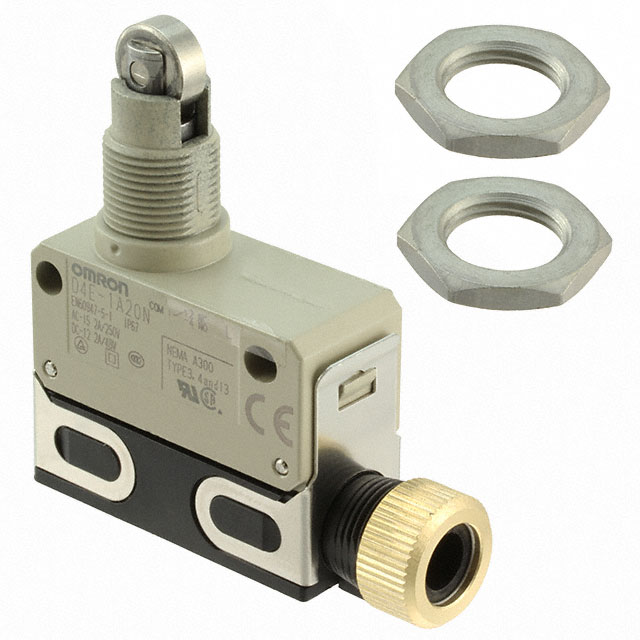

D4E-1A20 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Operating Position | Operating Position | Voltage Rating - DC | Circuit | Differential Travel | Differential Travel | Actuator Type | Electrical Life | Operating Force | Current Rating (Amps) | Termination Style | Switch Function | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Mechanical Life | Release Force | Overtravel | Overtravel | Ingress Protection | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 1.235 in | 31.4 mm | 30 V | SPDT | 0.1 mm | 0.004 in | Roller Plunger | 500000 Cycles | 1200 gf | 5 A | Screw Terminal | On-Mom | Panel Mount | -10 °C | 80 °C | 125 V | 10000000 Cycles | 500 gf | 0.118 " | 3 mm | IP67 - Dust Tight Waterproof | 0.06 in | 1.5 mm |
