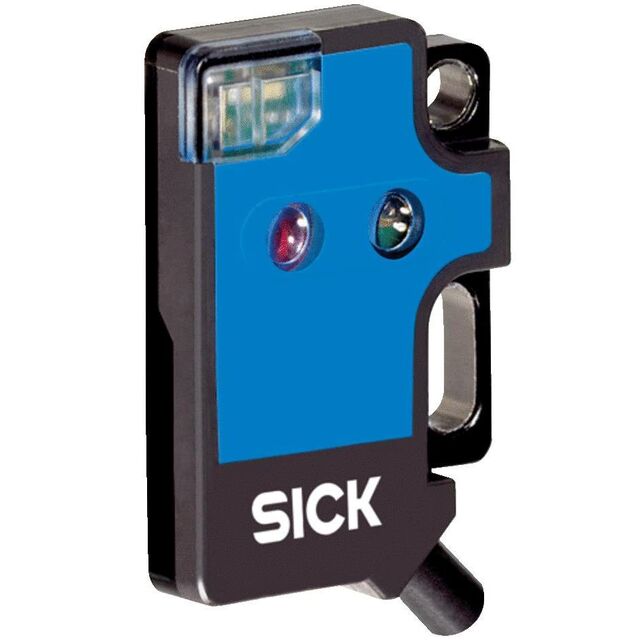

WT2F Series

Catalog

SENSOR PROXIMITY 18MM NPN

Part	Light Source	Sensing Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Cable Length	Cable Length	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Output Configuration
SICK, Inc. 6030585	Red (660nm)	Proximity	12 VDC	24 V	IP67	0.709 "	0.079 "	18 mm	2 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	NPN
SICK, Inc. 6030590	Red (660nm)	Proximity	12 VDC	24 V	IP67	0.354 "	0.039 "	9 mm	1 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	NPN
SICK, Inc. WT2F-P150	Red (660nm)	Proximity	12 VDC	24 V	IP67	1.339 "	0.079 "	34 mm	2 mm	2 m	78.74 "	500 µs	55 °C	-20 °C	Cable	PNP
SICK, Inc. 6030586	Red (660nm)	Proximity	12 VDC	24 V	IP67	0.709 "	0.079 "	18 mm	2 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	PNP
SICK, Inc. 6030575	Red (660nm)	Proximity	12 VDC	24 V	IP67	4.528 "	0.157 "	115 mm	4 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	PNP
SICK, Inc. 6030584	Red (660nm)	Proximity	12 VDC	24 V	IP67	0.709 "	0.079 "	18 mm	2 mm	2 m	78.74 "	500 µs	55 °C	-20 °C	Cable	PNP
SICK, Inc. 6030582	Red (660nm)	Proximity	12 VDC	24 V	IP67	1.339 "	0.079 "	34 mm	2 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	NPN
SICK, Inc. 6030573	Red (660nm)	Proximity	12 VDC	24 V	IP67	4.528 "	0.157 "	115 mm	4 mm	2 m	78.74 "	500 µs	55 °C	-20 °C	Cable	PNP
SICK, Inc. 6030574	Red (660nm)	Proximity	12 VDC	24 V	IP67	4.528 "	0.157 "	115 mm	4 mm	0.2 m	7.87 in	500 µs	55 °C	-20 °C	Cable with Connector	NPN
SICK, Inc. 6030583	Red (660nm)	Proximity	12 VDC	24 V	IP67	0.709 "	0.079 "	18 mm	2 mm	2 m	78.74 "	500 µs	55 °C	-20 °C	Cable	NPN
