CAB.M26 Series
Manufacturer: LEMO
Beta
⌘K

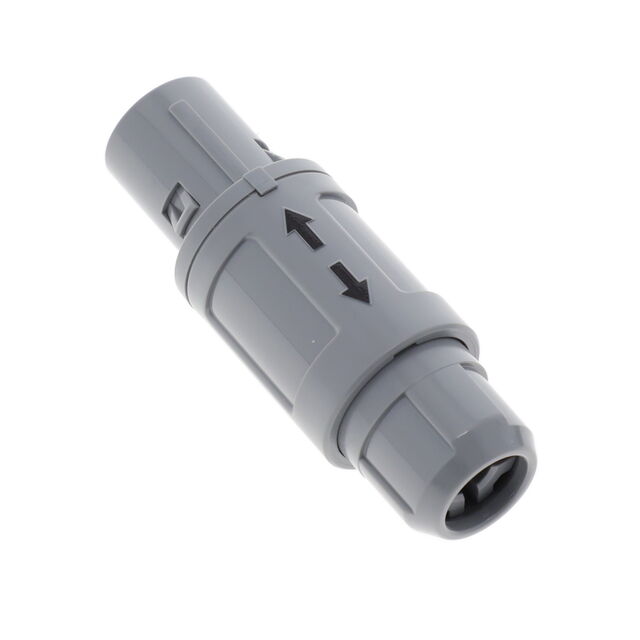

CONN PLUG MALE 26P GOLD SLDR CUP
| Part | Shielding | Orientation | Insert Material | Number of Positions | Color | Shell Material | Ingress Protection | Primary Material | Current Rating (Amps) | Mounting Type | Fastening Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Shell Size - Insert | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Connector Type | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Unshielded | B | Polyetheretherketone (PEEK) | 26 | Gray | Polysulfone (PSU) | IP50 - Dust Protected | Plastic | 2 A | Free Hanging (In-Line) | Detent Lock Push-Pull | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | M26 | Polysulfone (PSU) | 150 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | Gold | Backshell |
Unshielded | B | Polyetheretherketone (PEEK) | 26 | Gray | Polysulfone (PSU) | IP50 - Dust Protected | Plastic | 2 A | Free Hanging (In-Line) | Detent Lock Push-Pull | 3.2 mm | 0.205 in | 0.126 in | 5.2 mm | M26 | Polysulfone (PSU) | 150 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | Gold | Backshell | |
Unshielded | B | Polyetheretherketone (PEEK) | 26 | Gray Red | Polysulfone (PSU) | IP50 - Dust Protected | Plastic | 2 A | Free Hanging (In-Line) | Detent Lock Push-Pull | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | M26 | Polysulfone (PSU) | 150 °C | -50 °C | Automotive Industrial Medical Testing Equipment & Measurement | Plug Male Pins | Gold | Backshell |
