RPM7200 Series

Catalog

LINE FILTER 300VAC 25A CHASSIS

Part	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated AC	Termination Style	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Configuration
Astrodyne TDI RPM7200-25-S	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	25 A	Two Stage

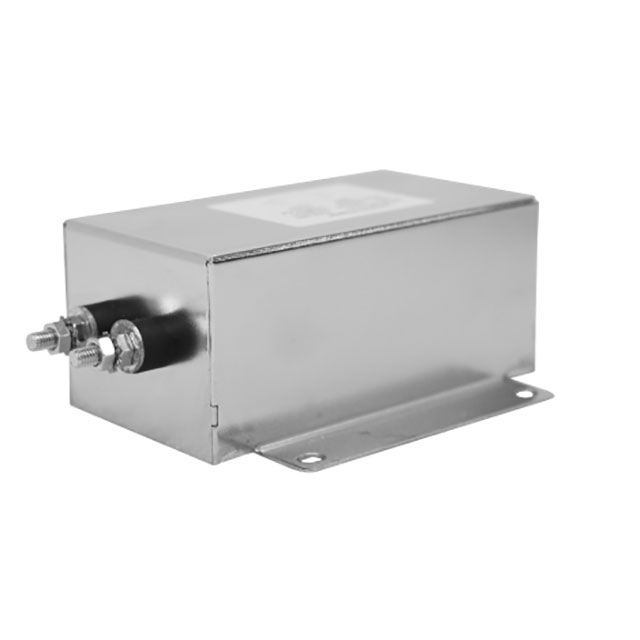

Astrodyne TDI RPM7200-50-S 0.8MA/LINE	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	50 A	Two Stage

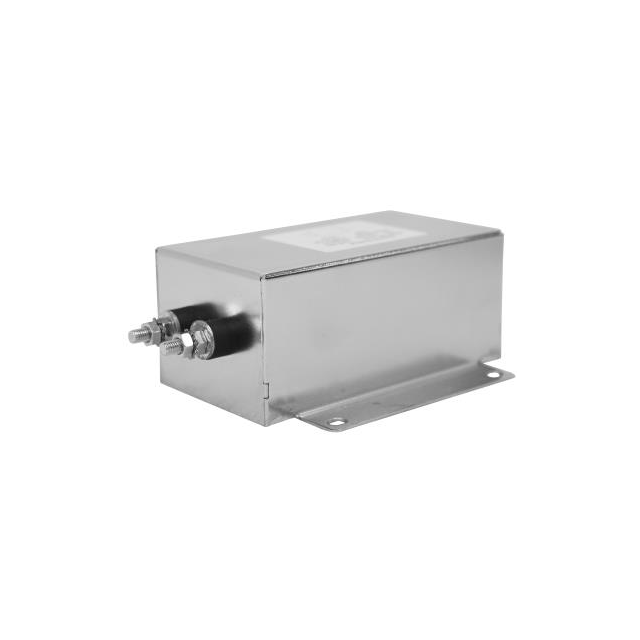

Astrodyne TDI RPM7200-10-S	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	10 A	Two Stage
Astrodyne TDI RPM7200-30-S	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	30 A	Two Stage
Astrodyne TDI RPM7200-15-S	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	15 A	Two Stage
Astrodyne TDI RPM7200-5-S	Single Phase	-40 C	100 °C	300 V	Threaded Post (M5)	Chassis Mount	60 Hz 400 Hz	50 Hz	5 A	Two Stage
