CKL13ETW Series

Catalog

KEYLOCK SWITCH, ON-OFF-ON, SPDT, 3 POSITION, SOLDER, 3 A

Part	Depth Behind Flange	Mechanical Life	Electrical Life	Actuator Type	Contact Material	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Current Rating (Amps)	Contact Finish	Angle of Throw	Key Removable Positions	Contact Timing	Features
NKK Switches CKL13ETW01	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals

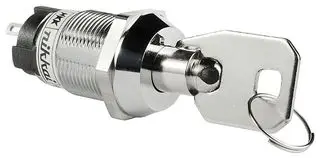

NKK Switches CKL13ETW01-001	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-007	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-035	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-025	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-004	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-040	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
NKK Switches CKL13ETW01-039	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals

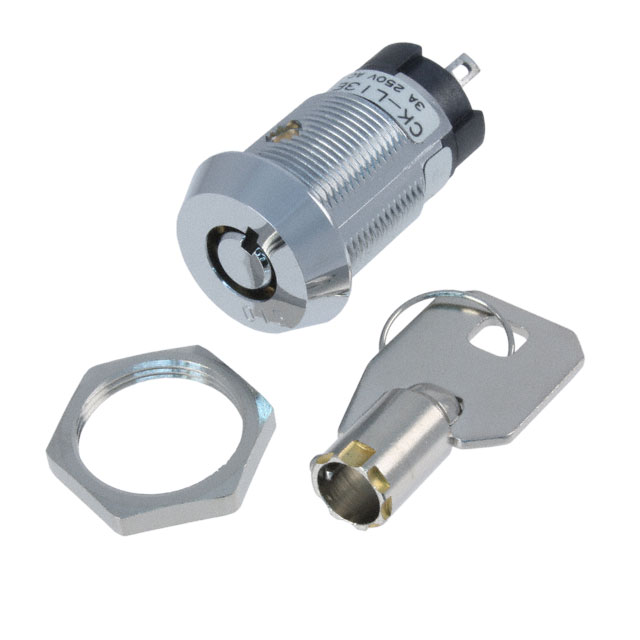

NKK Switches CKL13ETW01-015	34.6 mm	30000 Steps	10000 Cycles	Tubular Key	Silver (Ag)	Solder Lug	19 mm	On-Off-On	250 V	-25 °C	70 °C	SPDT	Panel Mount	3 A	Silver	45 °	2	Non-Shorting (BBM)	Epoxy Sealed Terminals
