1658527 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 12P IDC 26-28AWG GOLD

Part	Number of Rows	Mounting Type	Contact Type	Number of Positions	Color	Contact Finish	Row Spacing [x]	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Number of Positions

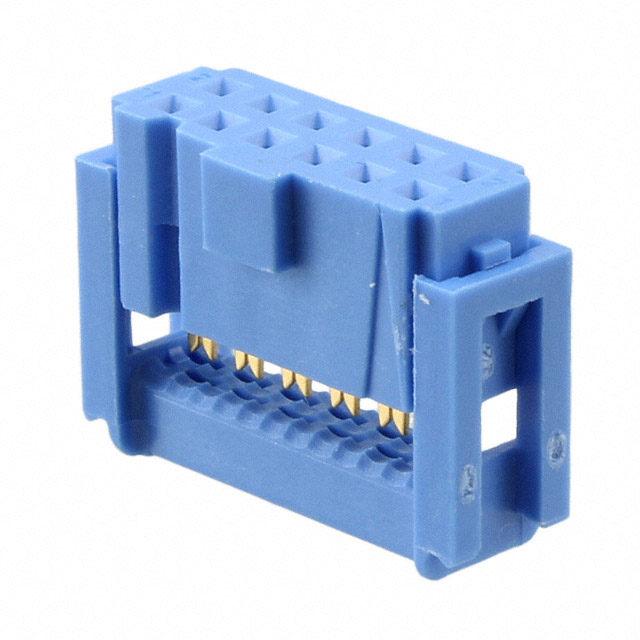

TE Connectivity Raychem Cable Protection 2-1658527-0	2	Free Hanging (In-Line)	Female Socket	12	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key	IDC	0.76 Ám	30 Áin	Ribbon Cable

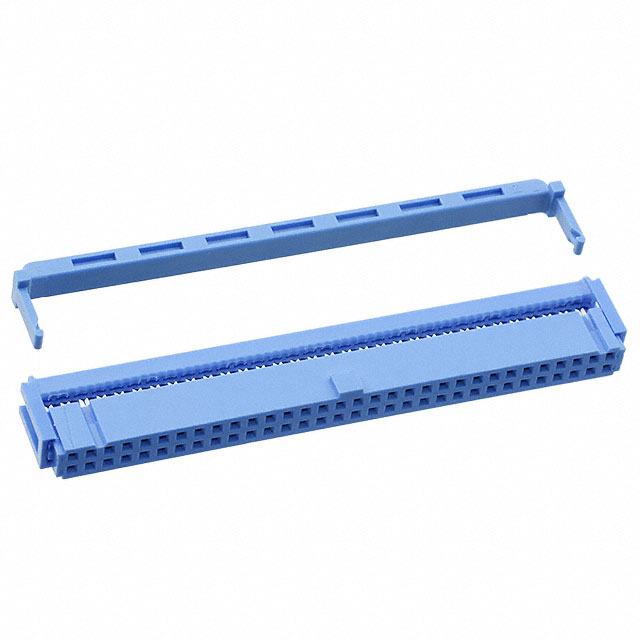

TE Connectivity Raychem Cable Protection 3-1658527-2	2	Free Hanging (In-Line)	Female Socket	64	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable
TE Connectivity Raychem Cable Protection 2-1658527-7	2	Free Hanging (In-Line)	Female Socket	30	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable

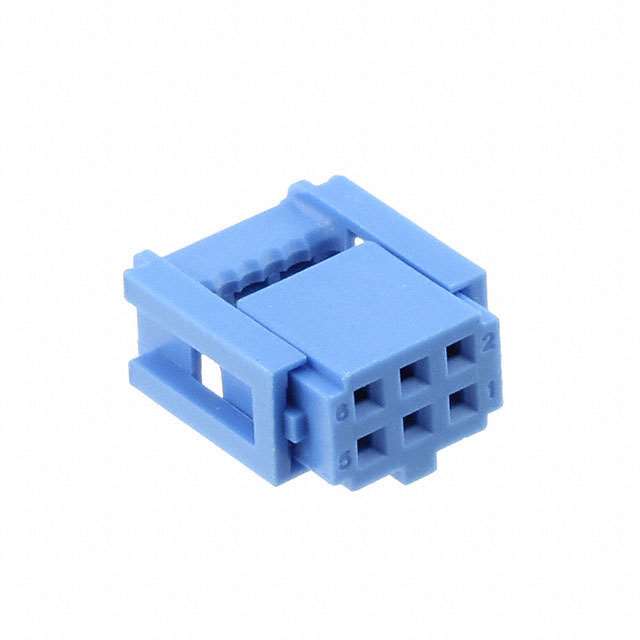

TE Connectivity Raychem Cable Protection 1-1658527-9	2	Free Hanging (In-Line)	Female Socket	6	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded

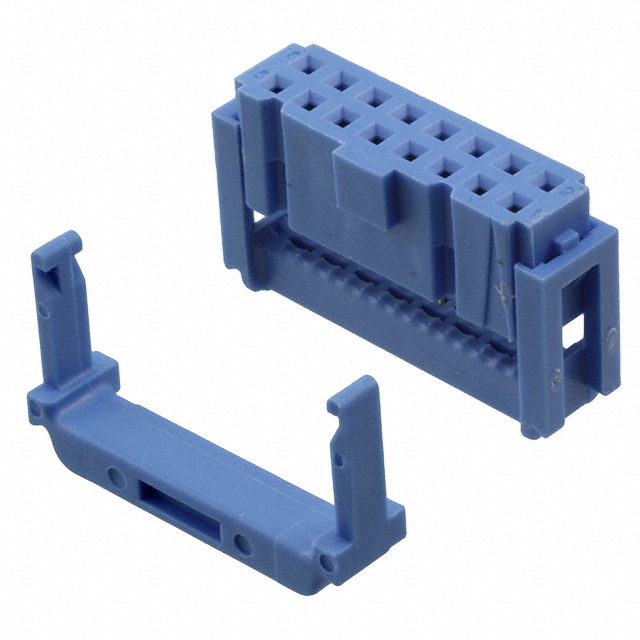

TE Connectivity Raychem Cable Protection 1658527-7	2	Free Hanging (In-Line)	Female Socket		Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded	16

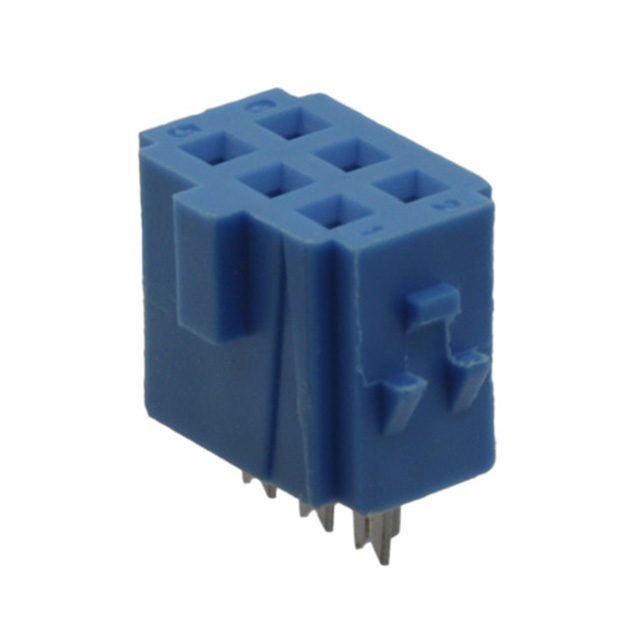

TE Connectivity Raychem Cable Protection 1658527-2	2	Free Hanging (In-Line)	Female Socket	6	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded

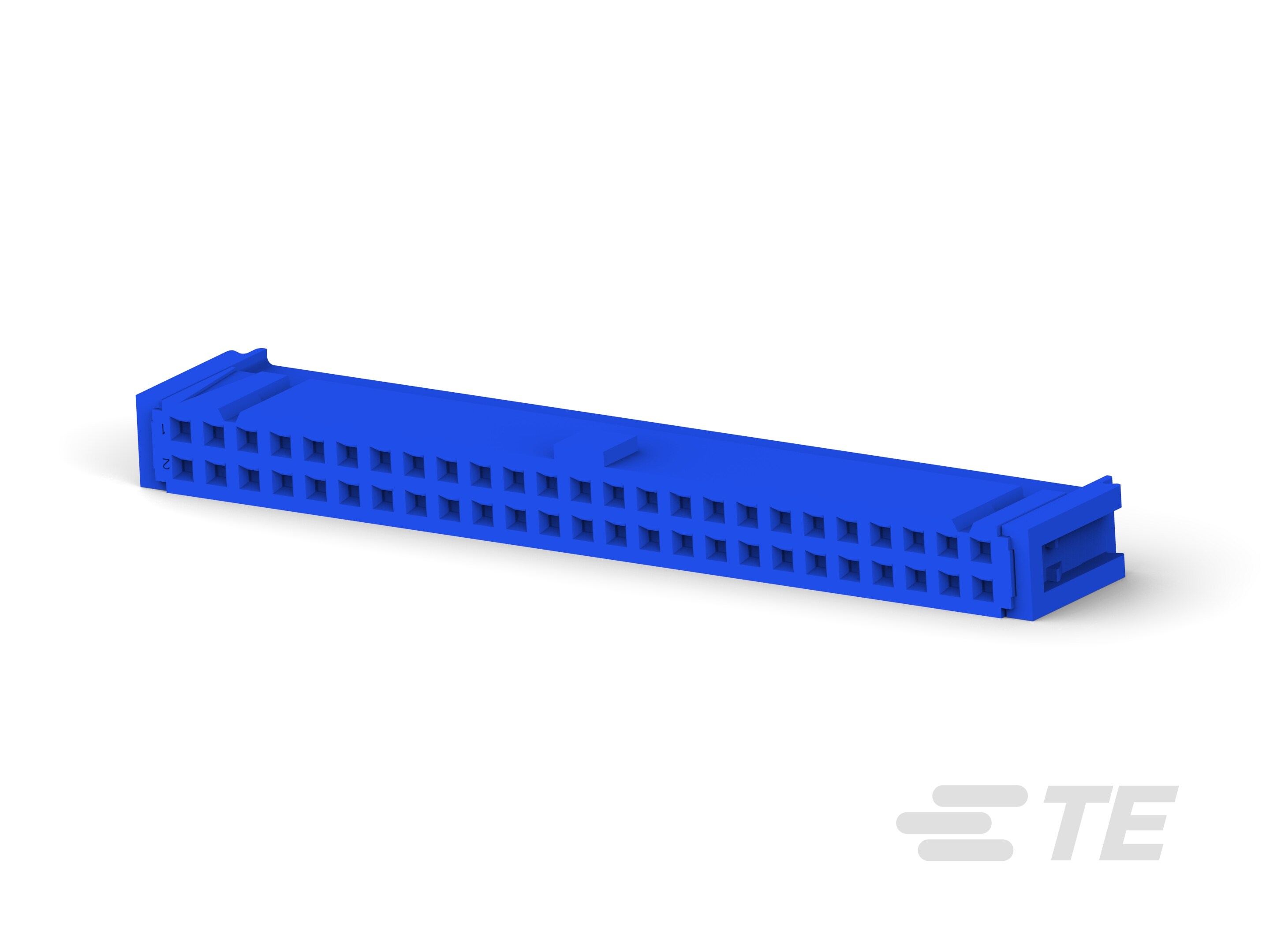

TE Connectivity Raychem Cable Protection 1-1658527-4	2	Free Hanging (In-Line)	Female Socket	50	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded

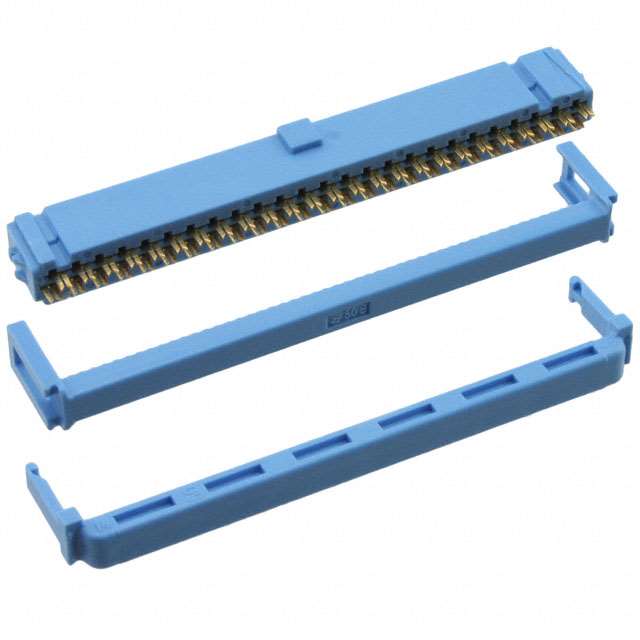

TE Connectivity Raychem Cable Protection 1-1658527-5	2	Free Hanging (In-Line)	Female Socket	50	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded
TE Connectivity Raychem Cable Protection 2-1658527-3	2	Free Hanging (In-Line)	Female Socket	20	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded
TE Connectivity Raychem Cable Protection 2-1658527-8	2	Free Hanging (In-Line)	Female Socket	34	Blue	Gold	0.1 in	2.54 mm	Receptacle	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	0.76 Ám	30 Áin	Ribbon Cable	26 AWG	28 AWG	Solid Stranded
